1
Engine displacement
1000
2
Model
RSV
3
Year
2002
4
Trim
RSV 1000
5
Parts Catalog

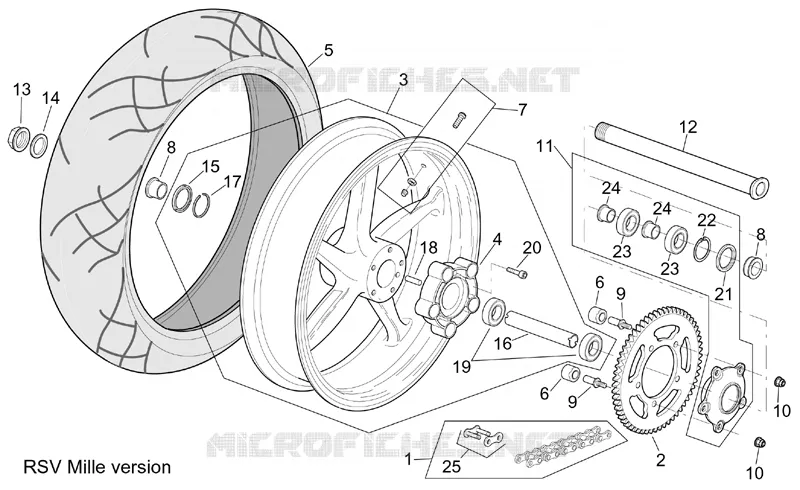

Rear wheel RSV Mille Version
6
Parts Diagram
Parts Catalog
FOOTRESTS
by
Cylinder head and valves
Rear wheel RSV Mille Version
1
2
3
4
5
6
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
1
Chain cpl conn.link
AP8107148
Not Available
1
Chain cpl conn.link
AP8107118
Not Available
2
Chain ring Z=42
AP8107122
Not Available
3
Rear wheel, grey
AP8108676
Not Available
4
Rear wheel spring drive holder
AP8125733
Not Available
5
Tyre
0000000
Not Available
6
Flexible coupling rubber
AP8125731
Not Available
7
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
8
Rear wheel spacer
AP8121225
£13,37 Unit Price incl. VAT
9
Spring drive fixing bush
AP8121408
Not Available
10
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
11
Crown holder cpl.
AP8125730
Not Available
12
Rear wheel spindle
AP8125831
Not Available
13
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
14
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
15
Gasket ring 38x52x7
AP8125786
£51,38 Unit Price incl. VAT
16
Spacer
AP8125787
Not Available
17
Circlip
AP8125788
£14,47 Unit Price incl. VAT
18
Pin 10x20
AP8150463
£2,80 Unit Price incl. VAT
19
Bearing 6205-2rs1 25x52x15
AP8106806
£66,94 Unit Price incl. VAT
20
Hex socket screw M10x30
AP8150195
£1,88 Unit Price incl. VAT
21
Gasket ring 38x55x7
AP8121213
£13,72 Unit Price incl. VAT
22
Inside circlip d55
AP8121212
£2,80 Unit Price incl. VAT
23
Bearing 30x55x13
AP8110081
£25,36 Unit Price incl. VAT
24
Spring drive spacer
AP8125732
£86,94 Unit Price incl. VAT
25
Connecting link
AP8107136
Not Available
25
Connecting link
AP8107150
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
