1
Engine displacement
1000
2
Model
RSV
3
Year
2002
4
Trim
RSV 1000
5
Parts Catalog

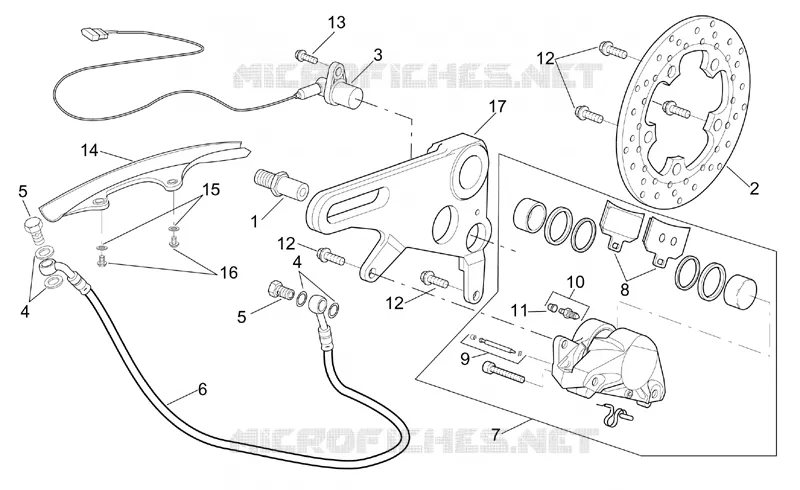

Rear brake caliper
6
Parts Diagram
Parts Catalog
FRONT ELECTRICAL SYSTEM
by
THROTTLE BODY
Rear brake caliper
1
2
3
4
4
5
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
1
Brake supp. plate pin
AP8121234
£23,71 Unit Price incl. VAT
2
Rear brake disc
AP8113612
Not Available
3
Speedometer sensor cpl.
AP8124528
£243,24 Unit Price incl. VAT
4
Gasket
AP8121915
Not Available
5
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
6
Rear brake hose
AP8113873
£213,07 Unit Price incl. VAT
7
Rear brake caliper
AP8113897
Not Available
8
Pads pair
AP8113898
Not Available
9
Pin+split pin
AP8113752
£29,04 Unit Price incl. VAT
10
Air bleed valve
AP8113895
£30,62 Unit Price incl. VAT
11
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
12
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
Rear brake hose support
AP8134443
Not Available
15
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
16
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
17
Brake hanger plate
AP8134385
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
