1
Engine displacement
1000
2
Model
RSV
3
Year
2001
4
Trim
RSV 1000
5
Parts Catalog

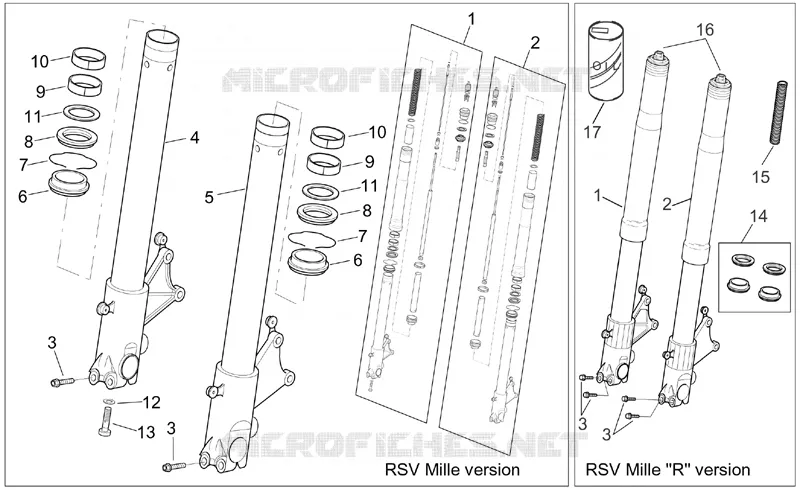

Front fork II
6
Parts Diagram
Parts Catalog
Clutch pump
by
Front body - Duct
Front fork II
1
1
2
2
3
3
3
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
1
RH hub cpl.
AP8123970
Not Available
1
RH hub cpl.
AP8123637
Not Available
2
LH hub cpl.
AP8123638
Not Available
2
LH hub cpl.
AP8123971
Not Available
3
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
3
screw M8x40
AP8121573
Not Available
4
Hub+RH fork leg
AP8123822
Not Available
5
Hub+LH fork leg
AP8123823
Not Available
6
Dust cover
AP8123824
£34,81 Unit Price incl. VAT
7
Circlip
AP8123806
Not Available
8
Oil seal
AP8123825
£32,47 Unit Price incl. VAT
9
Bush D.47,1xd.43xh.20
AP8123827
Not Available
10
Bush D.44,5xd.41,1xh.20
AP8123828
Not Available
11
Ring
AP8123826
Not Available
12
Special washer
AP8123811
£12,65 Unit Price incl. VAT
13
screw M10x1,5
AP8123812
£24,38 Unit Price incl. VAT
14
Front fork revision kit
AP8123975
Not Available
15
Spring
AP8163057
Not Available
16
Plug cpl.
AP8123977
Not Available
17
Front fork oil 1 lt.
AP8116071
£80,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
