1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog
REAR BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
REAR BRAKE CALIPER
REAR BRAKE MASTER CYLINDER
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Maît.cyl. frein AR
2B007140
Not Available
2
Fork
AP8113081
£16,07 Unit Price incl. VAT
3
Gear selector fork clips
AP8113082
£18,83 Unit Price incl. VAT
4
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
5
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
6
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
7
Tuyau de réservoir d'huile
2B007141
£9,97 Unit Price incl. VAT
8
Réserv. huile freins
2B007248
£83,70 Unit Price incl. VAT
9
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
10
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
11
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
12
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
13
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
14
Levier de frein arrière
2B006355
£95,75 Unit Price incl. VAT
15
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
16
Silent block, spring
AP8120822
£7,93 Unit Price incl. VAT
17
Spring
893138
£10,82 Unit Price incl. VAT
18
Fixing pin
859946
£9,66 Unit Price incl. VAT
19
Lever pin
884033
Not Available
20
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
21
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
22
Stop switch
2D000325
£60,13 Unit Price incl. VAT
23
Electric device support
2B004845
£6,05 Unit Price incl. VAT
24
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
25
Rubber bellows
AP8113288
£48,95 Unit Price incl. VAT
26
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
27
O-ring OR112
AP8120178
£4,69 Unit Price incl. VAT
28
Sheet edge spring
CM013203
£2,45 Unit Price incl. VAT

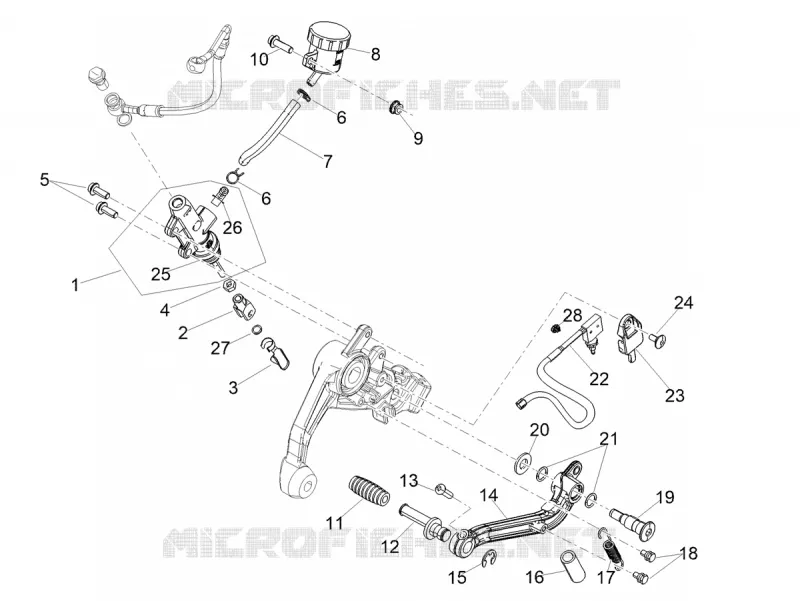

Find the detailed REAR BRAKE MASTER CYLINDER APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
