1
Engine displacement
50
2
Model
RS4
3
Year
2016
4
Trim
RS4 50 2T
5
Parts Catalog
EXHAUST
6
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
Carburettor

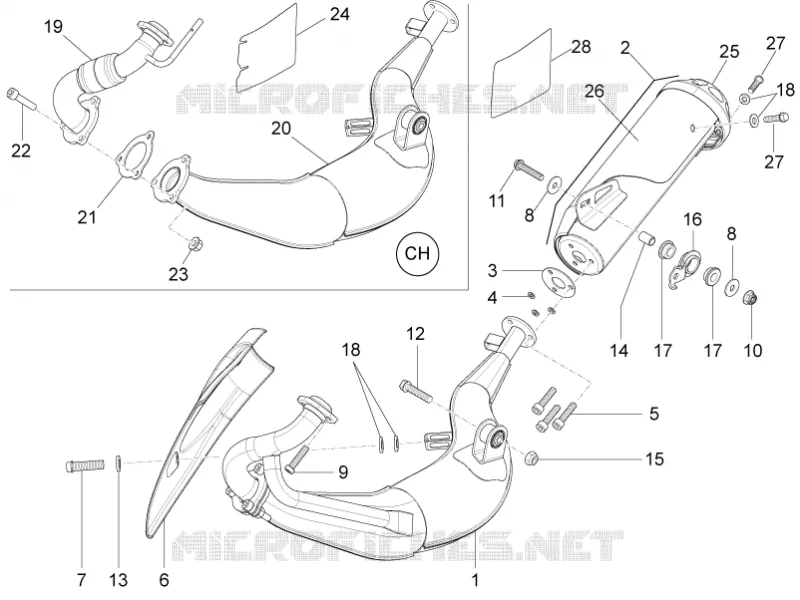

EXHAUST
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
27
28
1
Silencer
2B000432
£506,42 Unit Price incl. VAT
1
Silencer
B043500
Not Available
2
Silencer
866721
Not Available
3
Exhaust pipe gasket
866661
Not Available
4
Washer D6 DIN125 AZNB
00402060001
Not Available
5
screw M6x20
00002062011
Not Available
6
Exhaust pipe front prot.
86630100W5G
£19,88 Unit Price incl. VAT
7
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
8
Washer
AP8150018
£1,88 Unit Price incl. VAT
9
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
10
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
11
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
12
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
13
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
14
Spacer bush
AP8121455
£4,31 Unit Price incl. VAT
15
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
16
Silencer support
B043545
£34,72 Unit Price incl. VAT
17
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
18
Washer
00F04201361
£1,21 Unit Price incl. VAT
19
Tubo scarico anteriore
867227
Not Available
20
Silencer
867224
Not Available
21
Gasket
865093
Not Available
22
Hex socket screw 6x16
00000004615
Not Available
23
Nut
00026006001
Not Available
24
Heat protection
867277
Not Available
25
Exhaust pipe trailing
866728
£13,85 Unit Price incl. VAT
26
Silencer protection
866727
Not Available
27
screw
864201
£7,48 Unit Price incl. VAT
28
Heat protection
866751
£12,52 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
