1
Engine displacement
125
2
Model
RS
3
Year
2023
4
Trim
RS 125 4T Euro 5 ABS
5
Parts Catalog

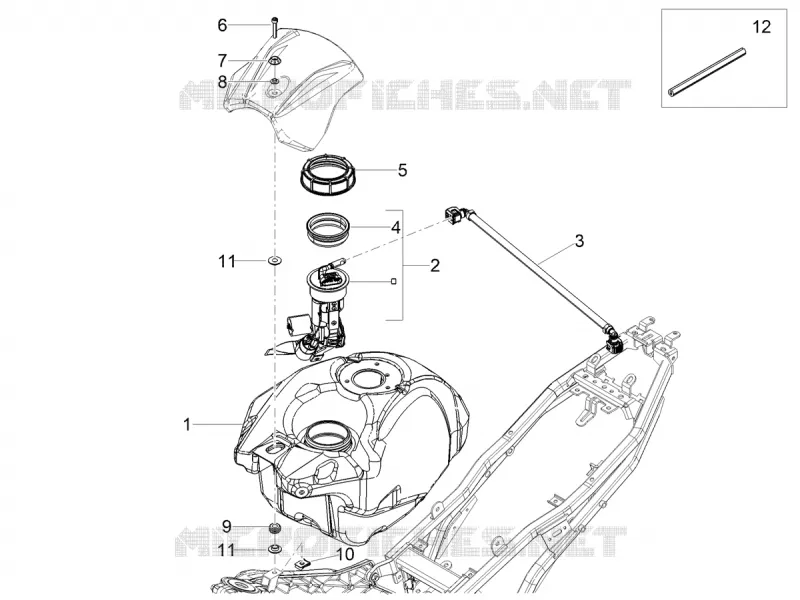

FUEL TANK
6
Parts Diagram
Parts Catalog
HANDLEBAR - CONTROLS
by
WATERPUMP
FUEL TANK
1
2
3
4
5
6
7
8
9
10
11
11
12
1
Reservoir carburant
2B008201
£390,34 Unit Price incl. VAT
2
Pompe essence
2D000605
£317,09 Unit Price incl. VAT
3
Tubo carburante completo
2B008232
£78,05 Unit Price incl. VAT
4
Gasket
576542
Not Available
5
Ring nut
576546
£7,22 Unit Price incl. VAT
6
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
7
Special washer
AP8150536
£24,73 Unit Price incl. VAT
8
Bush
AP8121032
£3,88 Unit Price incl. VAT
9
Rubber spacer
AP8144713
£13,56 Unit Price incl. VAT
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
T bush
898715
£10,54 Unit Price incl. VAT
12
Gasket
2B000909
£2,84 Unit Price incl. VAT

Find the detailed FUEL TANK APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
