1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
6

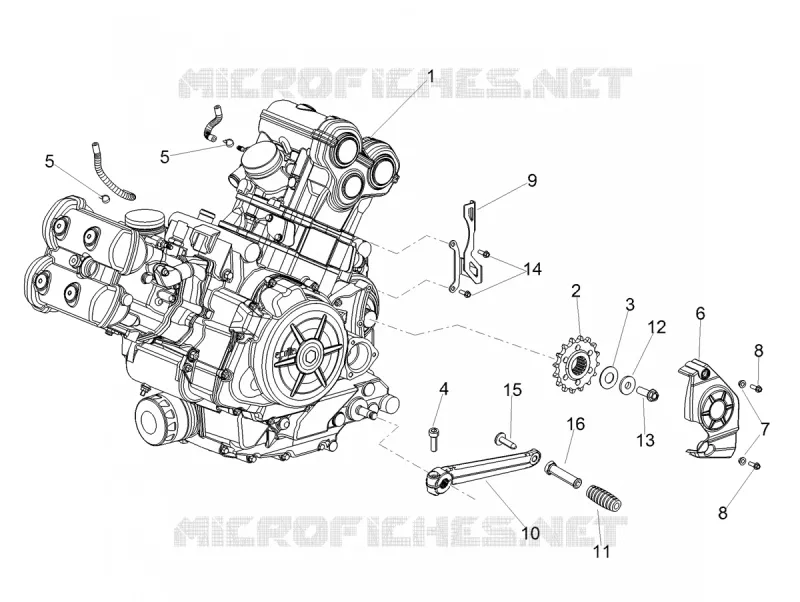

Parts Diagram
Parts Catalog
OIL PUMP - OIL FILTER
by
CRANKCASES I
ENGINE - GEAR LEVER - SPROCKET
1
2
3
3
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
1
Engine cpl.
CM1610035
Not Available
2
Pinion Z=16
974556
£99,59 Unit Price incl. VAT
3
Belleville spring
2B002193
£1,49 Unit Price incl. VAT
4
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
5
Hose clamp D 11,9
AP8201358
£0,60 Unit Price incl. VAT
6
Sprocket cover
856069
£15,31 Unit Price incl. VAT
7
T bush
AP8121811
£1,27 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Plate
856079
£15,16 Unit Price incl. VAT
10
Missing description
2B004225
£78,84 Unit Price incl. VAT
11
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
12
T bushing
2B002191
£4,73 Unit Price incl. VAT
13
Screw w/ flange M10x25
B043047
£3,73 Unit Price incl. VAT
14
Screw w/ flange M6x65
874548
£2,48 Unit Price incl. VAT
15
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
16
Missing description
2B004288
£13,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
