1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog

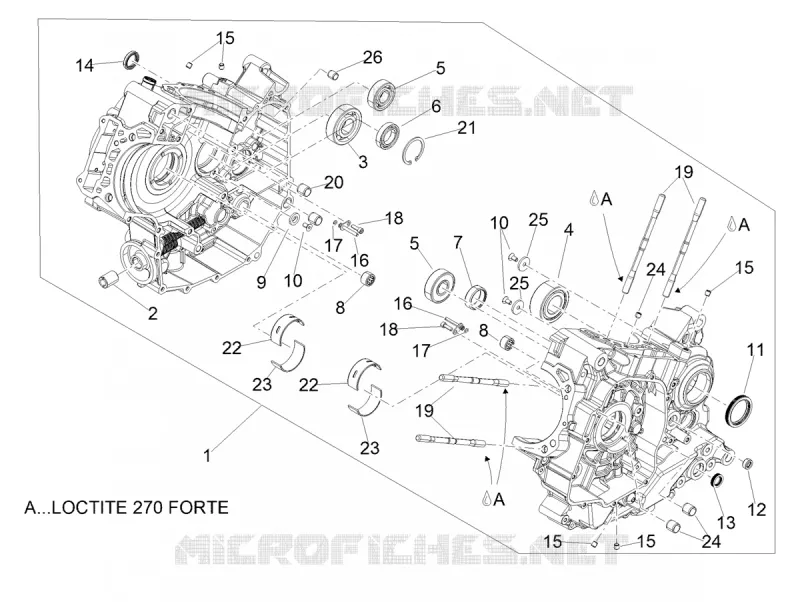

CRANKCASES I
6
Parts Diagram
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
by
CRANKCASES I
CRANKCASES I
1
2
3
4
5
5
6
7
8
8
9
10
10
11
12
13
14
15
15
15
15
16
16
17
17
18
18
19
19
20
21
22
22
23
23
24
24
25
25
26
1
Carter, pair "B"
1A0042310B
£1 903,26 Unit Price incl. VAT
1
Carter, pair "A"
1A0042310A
£1 903,26 Unit Price incl. VAT
2
Oil filter union
829122
£15,94 Unit Price incl. VAT
3
Ball bearing 25x62x17
848651
£38,11 Unit Price incl. VAT
4
Ball bearing 30x62x23,8
848475
£108,16 Unit Price incl. VAT
5
Ball bearing 20x47x14
848650
Not Available
6
Ball bearing 25x42x9
872033
£31,86 Unit Price incl. VAT
7
Roller cage 30x37x12
974129
Not Available
8
Roller cage
122671
£6,23 Unit Price incl. VAT
9
Washer
873905
£10,52 Unit Price incl. VAT
10
Screw
B013608
£1,98 Unit Price incl. VAT
11
Gasket ring
848474
£27,85 Unit Price incl. VAT
12
Gasket ring 8x16x7
825577
£6,19 Unit Price incl. VAT
13
Gasket ring 14x22x5
974112
Not Available
14
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
15
Plug
876748
£1,38 Unit Price incl. VAT
16
Oil sprayer pipe
847537
£31,64 Unit Price incl. VAT
17
Gasket ring
487073
£1,21 Unit Price incl. VAT
18
Screw
B013349
£2,36 Unit Price incl. VAT
19
Stud bolt
1A003631R
£13,02 Unit Price incl. VAT
20
Locating dowel (D.15,8)
974051
£8,20 Unit Price incl. VAT
21
Circlip
006642
Not Available
22
Bushing,red cat A
8783940001
£75,44 Unit Price incl. VAT
22
Bushing,yellow cat C
8783940003
£70,90 Unit Price incl. VAT
22
Bushing, green cat D
8783940004
£75,44 Unit Price incl. VAT
22
Bushing,blue cat B
8783940002
£75,44 Unit Price incl. VAT
23
Bearing half-shell catA rosso
8793650001
£36,29 Unit Price incl. VAT
23
Bearing half-shell catB blu
8793650002
£36,29 Unit Price incl. VAT
23
Bearing half-shell catC giallo
8793650003
£34,12 Unit Price incl. VAT
23
Bearing half-shell catE verde
8793650004
£36,29 Unit Price incl. VAT
24
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
25
Washer
873928
£10,54 Unit Price incl. VAT
26
Locating dowel D6
874598
£10,97 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
