1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog
HANDLEBAR - CONTROLS
6
Parts Diagram
Parts Catalog
STEERING
by
CLUTCH LEVER
HANDLEBAR - CONTROLS
1
2
3
4
5
5
6
6
7
8
9
10
11
1
Tubular handlebar
2B004162
£154,78 Unit Price incl. VAT
2
RH lights selector
B045021
£155,14 Unit Price incl. VAT
3
LH lights selector
896107
£191,72 Unit Price incl. VAT
4
Upper handlebar clamp
2B004159
£96,80 Unit Price incl. VAT
5
Anti.v weight, black
AP8104509
£32,14 Unit Price incl. VAT
6
Hex socket screw M6x40
AP8152003
£1,27 Unit Price incl. VAT
7
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT
8
Screw M8x25 INOX
AP8152486
£7,33 Unit Price incl. VAT
9
LH rearview mirror
AP8104922
£38,51 Unit Price incl. VAT
10
RH rearview mirror
AP8104921
£38,51 Unit Price incl. VAT
11
Electronic gas control
2D000095
£282,76 Unit Price incl. VAT

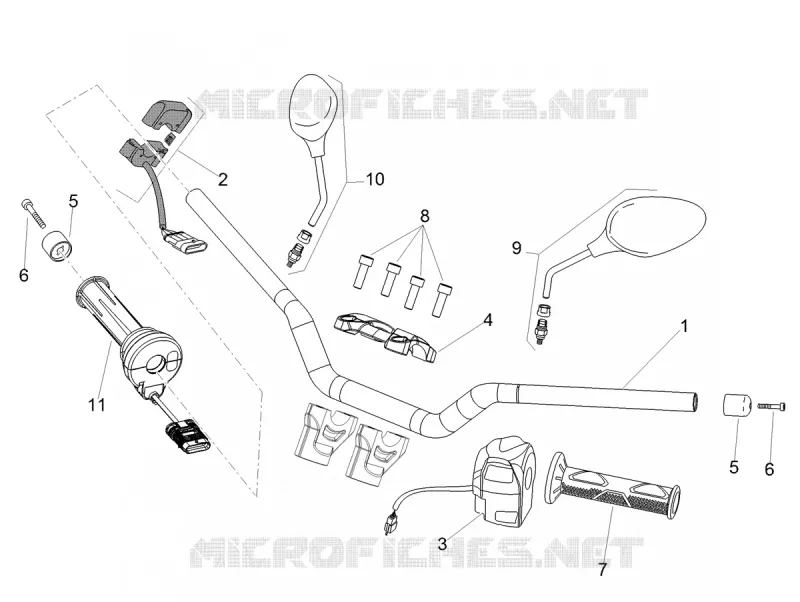

Find the detailed HANDLEBAR - CONTROLS APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
