TAIL LIGHTS
6

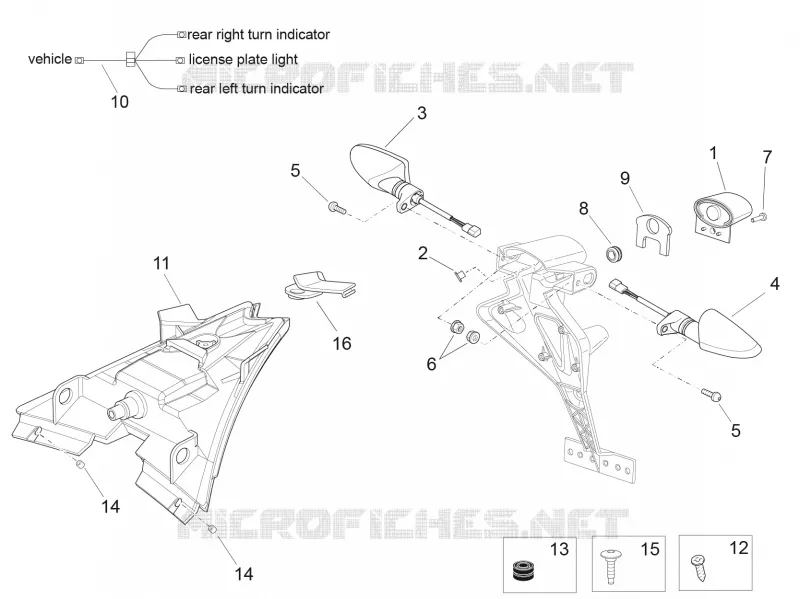

Parts Diagram
Parts Catalog
FLYWHEEL COVER
by
FOOTRESTS
TAIL LIGHTS
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
1
Number-plate light
AP8127098
Not Available
2
T bush
894566
£10,54 Unit Price incl. VAT
3
Rear RH turn indicator
2D000137
Not Available
4
Rear LH turn indicator
2D000138
Not Available
5
Hex socket screw M6x20
AP8152137
£2,34 Unit Price incl. VAT
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
8
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
9
Vibration-damping rubber
AP8117258
£7,86 Unit Price incl. VAT
10
Plate light wiring
2D000141
£33,84 Unit Price incl. VAT
11
Taillight
858725
Not Available
12
Self-tapping screw *
AP8150420
£1,88 Unit Price incl. VAT
13
Rubber spacer
AP8220186
£2,48 Unit Price incl. VAT
14
Bushing 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
15
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
16
Taillight Cover
858839
£15,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
