1
Engine displacement
1100
2
Model
RSV4
3
Year
2020
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
REAR BRAKE CALIPER
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
CYLINDER - PISTON

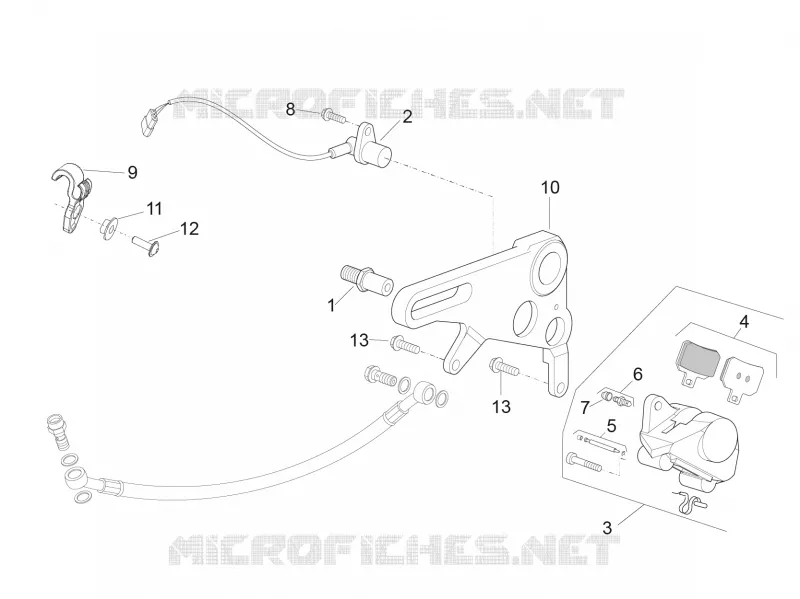

REAR BRAKE CALIPER
1
2
3
4
5
6
7
8
9
10
11
12
13
13
1
Brake supp. plate pin
898486
Not Available
2
Sensor ABS
859792
Not Available
3
Pince frein arrière
2B005722
£565,70 Unit Price incl. VAT
4
Pads pair
893969
£71,70 Unit Price incl. VAT
5
Pin+split pin
AP8113752
£29,04 Unit Price incl. VAT
6
Air bleed valve
AP8113753
£36,54 Unit Price incl. VAT
7
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
8
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
9
Rear brake hose support
858791
£7,88 Unit Price incl. VAT
10
Rear brake caliper support
2B003449
£263,81 Unit Price incl. VAT
11
T bush
AP8221349
£4,93 Unit Price incl. VAT
12
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
13
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
