1
Engine displacement
1100
2
Model
RSV4
3
Year
2020
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog

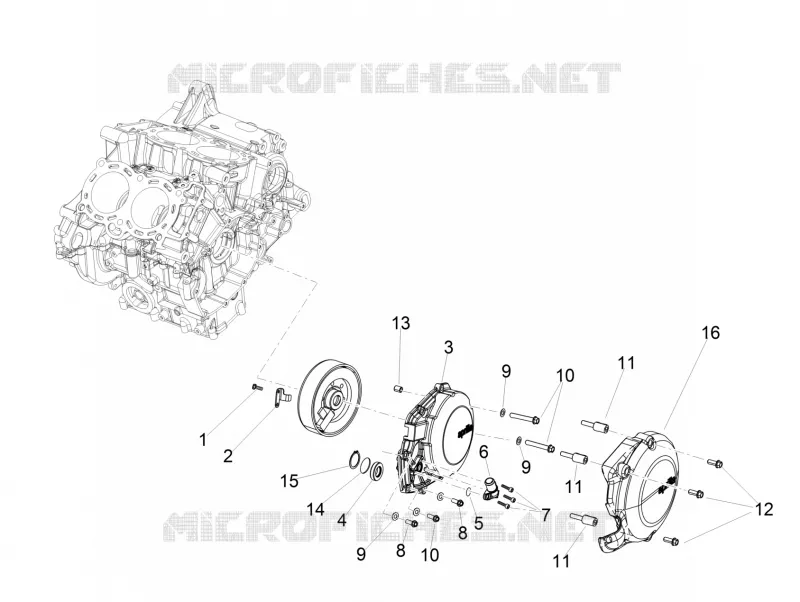

FLYWHEEL COVER
6
Parts Diagram
Parts Catalog
SECONDARY AIR
by
TAIL LIGHTS
FLYWHEEL COVER
1
2
3
4
5
6
7
8
8
9
9
9
10
10
11
11
11
12
13
14
15
16
1
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
2
Bracket
B046004
£3,01 Unit Price incl. VAT
3
BLACK Magnesium flywheel cover
2A000466
£169,01 Unit Price incl. VAT
4
Gasket ring 18x30x7
898268
£15,91 Unit Price incl. VAT
5
O-ring
857176
£2,12 Unit Price incl. VAT
6
Blow-by outlet Blow-by
85746200XNB
£49,44 Unit Price incl. VAT
7
screw M5x16
857048
£2,48 Unit Price incl. VAT
8
Screw w/ flange
871094
£1,27 Unit Price incl. VAT
9
Seal washer
2A000034
£1,99 Unit Price incl. VAT
10
Screw w/ flange
872117
Not Available
11
Special screw
1A009050
£4,54 Unit Price incl. VAT
12
Screw w/ flange M6x16
874555
£2,08 Unit Price incl. VAT
13
Pin
411209
£4,56 Unit Price incl. VAT
14
Clearance washer
898269
£7,85 Unit Price incl. VAT
15
Snap ring
006630
Not Available
16
Cover soundproofing material
1A007415
£27,54 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
