1
Engine displacement
1100
2
Model
RSV4
3
Year
2020
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
SECONDARY AIR
6
Parts Diagram
Parts Catalog
STARTER - STARTER MOTOR
by
FLYWHEEL COVER
SECONDARY AIR
1
2
3
4
4
4
5
6
6
7
8
9
10
1
pipe
856631
£38,60 Unit Price incl. VAT
2
pipe
856632
£27,68 Unit Price incl. VAT
3
pipe
856630
£32,58 Unit Price incl. VAT
4
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
5
Hose clamp
CM002916
£1,27 Unit Price incl. VAT
6
Hose clamp
CM225401
£7,85 Unit Price incl. VAT
7
SAS valve
857181
£96,67 Unit Price incl. VAT
8
Bracket
858727
£10,85 Unit Price incl. VAT
9
Bush
AP8121032
£3,88 Unit Price incl. VAT
10
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT

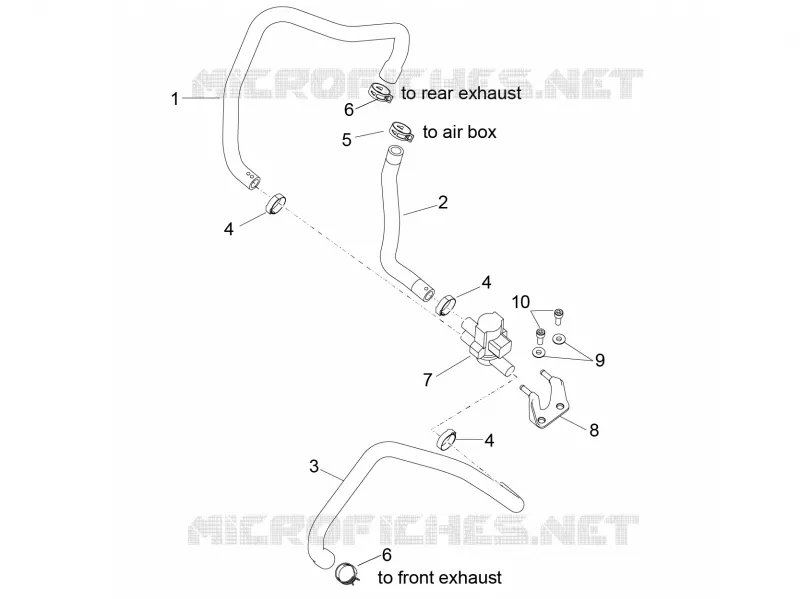

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
