1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
CRANKCASES I
6
Parts Diagram
Parts Catalog
SIDE FAIRINGS
by
OWNER'S MANUAL - TOOL KIT

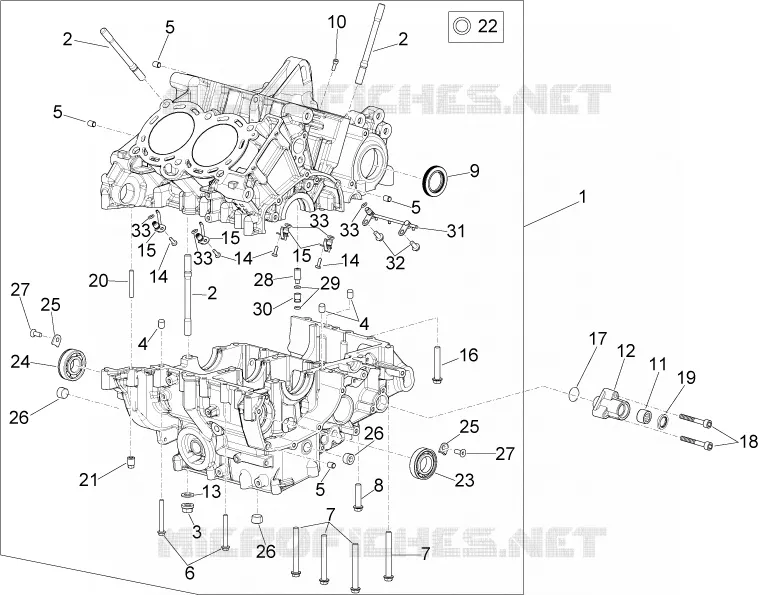

CRANKCASES I
1
2
2
2
3
4
4
5
5
5
5
6
7
7
8
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
28
28
29
30
31
32
33
33
33
33
1
Coupled crankase with i.p.
1A0130385
Not Available
2
Stud bolt m10x126
857087
Not Available
3
Flanged nut M10x1
897434
£13,64 Unit Price incl. VAT
4
Pin M8x12
857427
£2,23 Unit Price incl. VAT
5
Pin
411209
£4,56 Unit Price incl. VAT
6
Screw w/ flange M6x50
AP9100433
£2,44 Unit Price incl. VAT
7
Screw w/ flange
AP8152294
£1,88 Unit Price incl. VAT
8
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
9
Gasket ring 30x47x7
857128
£36,40 Unit Price incl. VAT
10
Hex socket screw M6x40
AP8152003
£1,27 Unit Price incl. VAT
11
12x8x12 roller bearing
B045224
£7,79 Unit Price incl. VAT
12
Maintenance
857090
£105,97 Unit Price incl. VAT
13
Washer 19 x 10,5 x 1,6
857208
£5,14 Unit Price incl. VAT
14
Screw TB 4X12 TORX
B046202
£0,60 Unit Price incl. VAT
15
Buse de refroidissement piston
1A0132125
£35,56 Unit Price incl. VAT
16
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
17
Gasket ring 17,12X2,62
857109
£5,14 Unit Price incl. VAT
18
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
19
Gasket ring 12x22
857127
Not Available
20
Missing description
1A011263
£3,49 Unit Price incl. VAT
21
Special nut
857496
£13,28 Unit Price incl. VAT
22
O-ring
857144
£0,71 Unit Price incl. VAT
23
Bearing
897436
£17,76 Unit Price incl. VAT
24
Bearing
897435
£13,52 Unit Price incl. VAT
25
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
26
Plug M16X1,5
974060
£5,27 Unit Price incl. VAT
27
Vis M6x16
1A011248
£4,92 Unit Price incl. VAT
28
Relief Valve
B045126
£25,40 Unit Price incl. VAT
29
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
30
Lubricating jet
2A000363
£6,96 Unit Price incl. VAT
31
Lubrication pipe
2A000569
£61,80 Unit Price incl. VAT
32
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
33
O-ring 6x1
GU90706009
£2,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
