Cooling system for APRILIA Caponord Carabinieri from 2015

Free shipping for all orders to United Kingdom over £150! See conditions.

Cooling system

1

Water cooler

B046128

Not Available

2

Rubber spacer

AP8120030

£1,38 Unit Price incl. VAT

3

T bush

AP8221023

£1,64 Unit Price incl. VAT

4

Screw w/ flange M6x25

AP8152280

£2,48 Unit Price incl. VAT

5

Fan, cpl.

622055

Not Available

6

Nut M4

AP8150204

£1,88 Unit Price incl. VAT

7

Washer 4,3x12x1

AP8150011

£1,88 Unit Price incl. VAT

8

Spacer

893513

£5,14 Unit Price incl. VAT

9

Washer d4,5

893823

£7,85 Unit Price incl. VAT

10

Screw

893514

£2,48 Unit Price incl. VAT

11

Breather pipe 7,5X3,5

AP8144506

£28,10 Unit Price incl. VAT

12

Breather pipe

897036

£10,08 Unit Price incl. VAT

13

"Y" union

897035

£13,04 Unit Price incl. VAT

14

Hose clamp

CM001901

£1,76 Unit Price incl. VAT

15

Hose clamp

CM001903

£1,87 Unit Price incl. VAT

16

Expansion tank

B045075

Not Available

17

Tank cap

573454

Not Available

18

Self-tap screw 5x14

AP8150509

£1,94 Unit Price incl. VAT

19

Washer 5,5x15x1,6*

AP8150013

£1,61 Unit Price incl. VAT

20

Breather pipe

2B000174

£13,75 Unit Price incl. VAT

21

Spring clamp 15/12

CM226901

£1,15 Unit Price incl. VAT

22

Water rad.feed pipe

2B000175

£11,26 Unit Price incl. VAT

23

Spring clamp 19/12

CM226902

£1,42 Unit Price incl. VAT

24

Connecting pipe

2B000055

£21,34 Unit Price incl. VAT

25

Cooler pipe

2B000054

£23,56 Unit Price incl. VAT

26

Thermostat valve set 85°C

834232

£108,74 Unit Price incl. VAT

27

Motor-pump valve tube

894511

£26,42 Unit Price incl. VAT

28

3-way pipe

894512

£104,80 Unit Price incl. VAT

29

Hose clamp

898060

£4,49 Unit Price incl. VAT

30

Spring clamp 15/12

CM226901

£1,15 Unit Price incl. VAT

31

Spring clamp 29/12

CM226909

£2,35 Unit Price incl. VAT

32

Spring clamp 32/12

CM226905

£5,70 Unit Price incl. VAT

33

Spring clamp 22/12

CM226903

£3,48 Unit Price incl. VAT

34

Spring clamp 35/12

CM226906

£5,53 Unit Price incl. VAT

35

Spring clamp 15/12

CM226908

£4,07 Unit Price incl. VAT

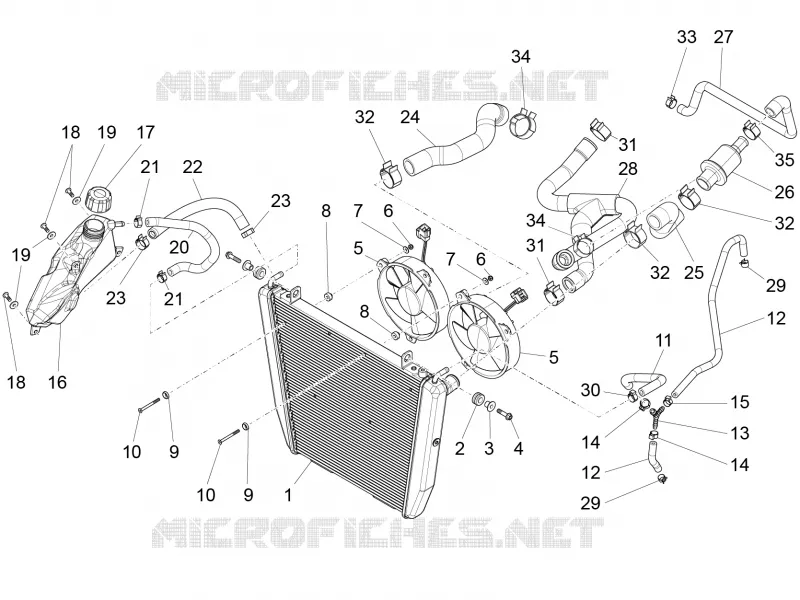

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
