1
Engine displacement
900
2
Model
DORSODURO
3
Year
2020
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
COOLING SYSTEM
6

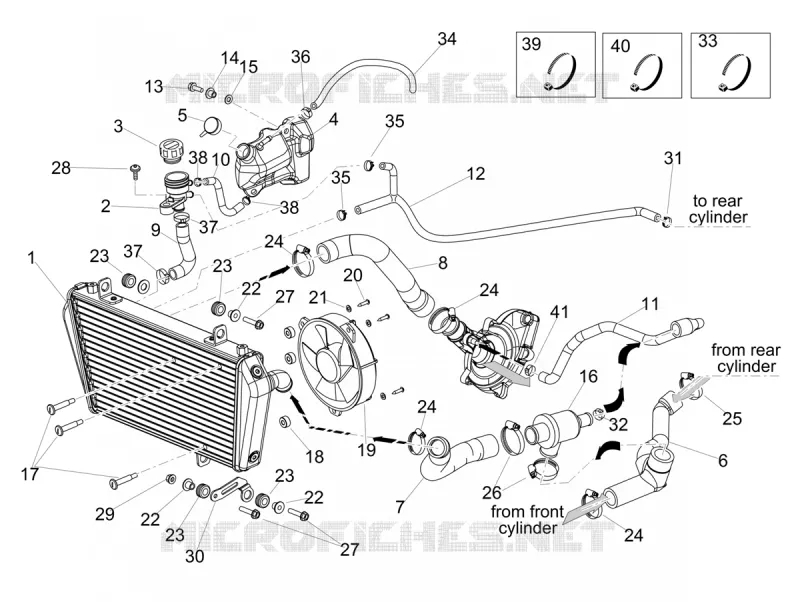

Parts Diagram
Parts Catalog
REAR ELECTRICAL SYSTEM
by
FOOTRESTS
COOLING SYSTEM
41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
23
23
23
24
24
24
24
25
26
27
27
28
29
30
31
32
33
34
35
35
36
37
37
38
38
39
40
1
Water cooler
897162
£1 116,29 Unit Price incl. VAT
2
Filler cap
AP8144644
£13,60 Unit Price incl. VAT
3
Cover
AP8102615
£57,40 Unit Price incl. VAT
4
Expansion tank
856802
£80,81 Unit Price incl. VAT
5
Expansion tank plug
AP8104836
Not Available
6
3-way pipe
2B003862
£68,24 Unit Price incl. VAT
7
Valve-cooler tube
2B003860
£19,15 Unit Price incl. VAT
8
Cooler-pump pipe
897414
£40,33 Unit Price incl. VAT
9
Water rad.feed pipe
851599
£18,38 Unit Price incl. VAT
10
Fuel pipe d.7x11
890496
£76,72 Unit Price incl. VAT
11
Motor-pump valve tube
2B003861
£11,69 Unit Price incl. VAT
12
Breather pipe
860328
£54,26 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
T bush *
AP8221145
£9,78 Unit Price incl. VAT
15
Rubber spacer
AP8220366
£0,18 Unit Price incl. VAT
16
Thermostat valve set 85°C
834232
£108,74 Unit Price incl. VAT
17
Pin
AP8121464
£4,82 Unit Price incl. VAT
18
Spacer
AP8161083
£4,68 Unit Price incl. VAT
19
Fan, cpl.
AP8124930
Not Available
20
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
21
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
22
T bush
AP8221023
£1,64 Unit Price incl. VAT
23
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
24
Hose clamp
CM001924
£5,17 Unit Price incl. VAT
25
Hose clip 290x8,9
AP8201409
£5,15 Unit Price incl. VAT
26
Spring clamp 29/12
CM226909
£2,35 Unit Price incl. VAT
27
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
28
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
29
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
30
Water cooler support
853458
£12,97 Unit Price incl. VAT
31
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
32
Hose clip D23,5x8*
AP8101743
£3,52 Unit Price incl. VAT
33
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
34
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
35
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
36
Hose clamp
AP8102738
£7,85 Unit Price incl. VAT
37
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
38
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
39
Hose clip 20x8
AP8102786
£3,46 Unit Price incl. VAT
40
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
41
Spring clamp 15/12
CM226901
£1,15 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
