1
Engine displacement
900
2
Model
DORSODURO
3
Year
2020
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
REAR CYLINDER TIMING SYSTEM
6
Parts Diagram
Parts Catalog
FRONT CYLINDER TIMING SYSTEM
by
CYLINDER - PISTON

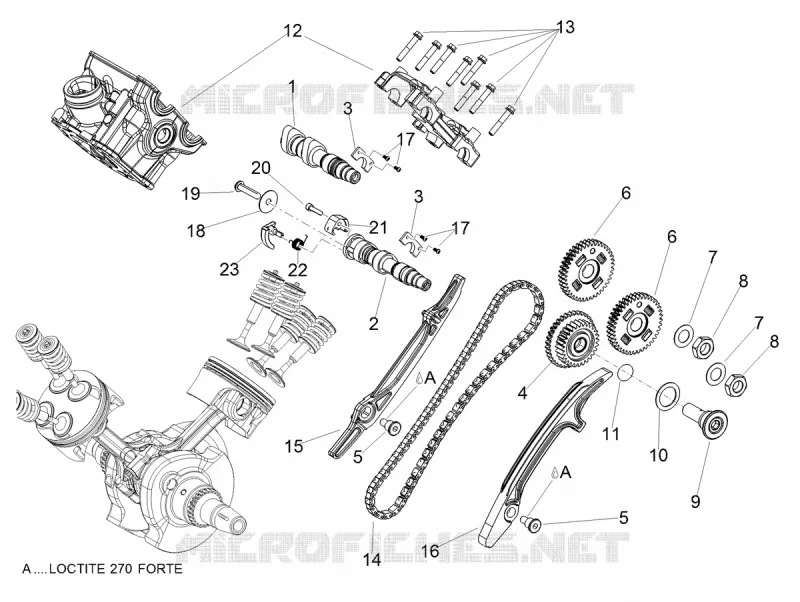

REAR CYLINDER TIMING SYSTEM
1
2
3
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
1
Rear intake camshaft
82979R
£275,95 Unit Price incl. VAT
2
Rear exhaust camshaft
1A008513
£262,94 Unit Price incl. VAT
3
Axial lock plate
878560
£13,70 Unit Price incl. VAT
4
Timing system gear cpl.
8745964
£239,44 Unit Price incl. VAT
5
Spacer screw M8
878868
£8,14 Unit Price incl. VAT
6
Rear timing system gear cpl.
8499104
£277,81 Unit Price incl. VAT
7
Thrust washer
874744
£3,77 Unit Price incl. VAT
8
Nut M15x1 SX
874752
£14,35 Unit Price incl. VAT
9
Special screw
1A006352
£71,88 Unit Price incl. VAT
10
Safety washer
849817
£3,72 Unit Price incl. VAT
11
Gasket ring
873233
£1,27 Unit Price incl. VAT
12
LH head assy with valve
1A008221
Not Available
13
Screw w/ flange
B016191
£1,58 Unit Price incl. VAT
14
Camshaft chain
849827
£171,90 Unit Price incl. VAT
15
Chain guide plate
871798
£17,38 Unit Price incl. VAT
16
Camshaft chain
849827
£171,90 Unit Price incl. VAT
17
Screw TB 4X12 TORX
B046202
£0,60 Unit Price incl. VAT
18
Special washer
879523
£4,62 Unit Price incl. VAT
19
Torx convex big end screw
877884
£6,22 Unit Price incl. VAT
20
Hex socket screw
877885
£3,72 Unit Price incl. VAT
21
Decompressor counterweight
1A005192
£49,20 Unit Price incl. VAT
22
Decompression spring
1A005186
£22,52 Unit Price incl. VAT
23
Decompression counterweight
1A005191
£51,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
