1
Engine displacement
900
2
Model
DORSODURO
3
Year
2020
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
SIDE FAIRINGS
6
Parts Diagram
Parts Catalog
FRONT FENDER - LOWER FAIRING
by
SEAT

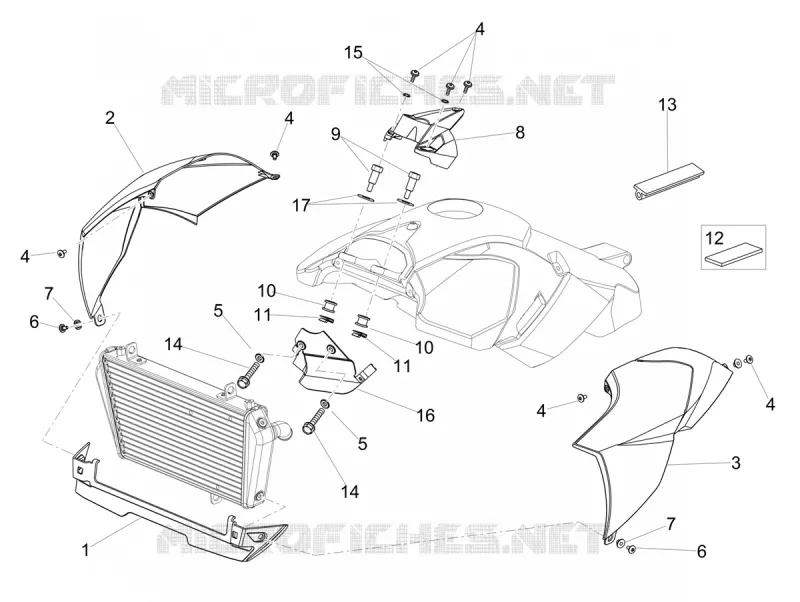

SIDE FAIRINGS
1
2
3
4
4
4
4
4
5
5
6
6
7
7
8
9
10
10
11
11
12
13
14
14
15
16
17
1
Air deflector
856860
£36,98 Unit Price incl. VAT
2
Flanc droit p.noir
2H001994000NI
£432,95 Unit Price incl. VAT
3
Flanc G, noir
2H001995000NI
£432,95 Unit Price incl. VAT
4
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
5
Bush
AP8121991
£3,60 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
7
Spacer
AP8120253
£1,66 Unit Price incl. VAT
8
Covers
856823
£29,09 Unit Price incl. VAT
9
Spacer
860137
£15,91 Unit Price incl. VAT
10
Rubber spacer
AP8144328
£3,12 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
13
Heat protection gasket
AP8117275
£16,88 Unit Price incl. VAT
14
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
15
Washer
AP8152037
£2,48 Unit Price incl. VAT
16
Guard
890421
£9,90 Unit Price incl. VAT
17
Washer
AP8152037
£2,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
