1
Engine displacement
125
2
Model
SX
3
Year
2020
4
Trim
SX 125 Euro 4
5
Parts Catalog

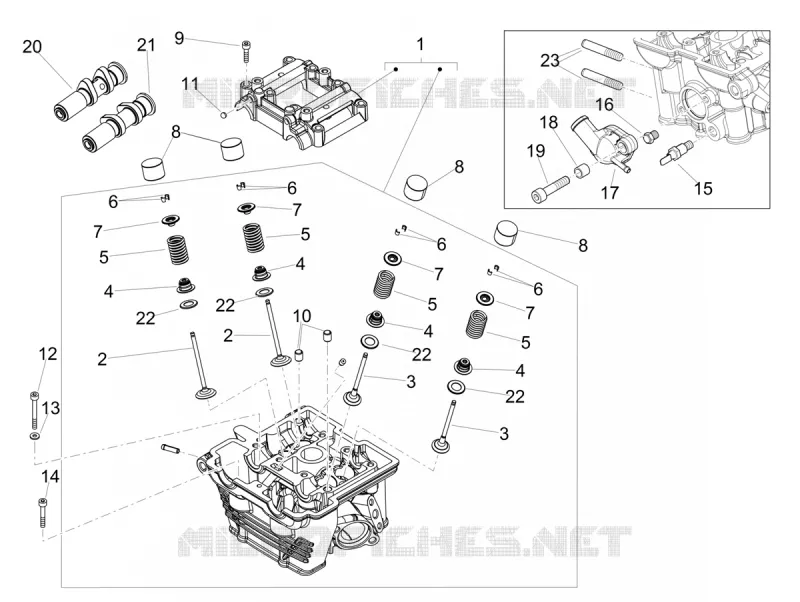

CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
WATERPUMP
by
IGNITION UNIT - FLYWHEEL
CYLINDER HEAD - VALVES
1
2
2
3
3
4
4
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
1
Cylinder head
1A007103
£567,29 Unit Price incl. VAT
2
Intake valve
AP3CLA000636
£21,58 Unit Price incl. VAT
3
Exhaust valve
AP3CLA000637
£25,67 Unit Price incl. VAT
4
Valve guide seal fitting jig
AP2CAA000521
Not Available
5
Spring
AP3CHA000237
£12,42 Unit Price incl. VAT
6
Half-cone
AP3CIA000238
Not Available
7
Upper cup
AP3CGA000635
£4,03 Unit Price incl. VAT
8
Valve lifter bucket 2,5
CM158207
Not Available
8
Valve lifter bucket 2,7
CM222711
£24,80 Unit Price incl. VAT
8
Valve lifter bucket 2,4
CM158205
Not Available
8
Valve lifter bucket 2,55
CM222708
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,45
CM222706
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,75
CM222712
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,35
CM222704
£24,04 Unit Price incl. VAT
8
Valve lifter bucket 2,3
CM222703
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,75
CM158212
Not Available
8
Valve lifter bucket 2,35
CM158204
Not Available
8
Valve lifter bucket 2,6
CM158209
Not Available
8
Valve lifter bucket 2,65
CM158210
Not Available
8
Valve lifter bucket 2,65
CM222710
£24,80 Unit Price incl. VAT
8
Valve lifter bucket 2,45
CM158206
Not Available
8
Valve lifter bucket 2,2
CM222701
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,3
CM158203
Not Available
8
Valve lifter bucket 2,6
CM222709
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,5
CM222707
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,25
CM222702
£24,04 Unit Price incl. VAT
8
Valve lifter bucket 2,4
CM222705
£26,05 Unit Price incl. VAT
8
Valve lifter bucket 2,55
CM158208
Not Available
8
Valve lifter bucket 2,2
CM158201
Not Available
8
Valve lifter bucket 2,25
CM158202
Not Available
8
Valve lifter bucket 2,7
CM158211
Not Available
9
Hexagonal-head screw m6x40
574260
£0,62 Unit Price incl. VAT
10
Locating dowel 8X10
AP3FCN000127
£1,16 Unit Price incl. VAT
11
Ball
AP3CAA000412
£2,50 Unit Price incl. VAT
12
screw M8x166
AP3ADN000115
£13,15 Unit Price incl. VAT
13
Washer
AP3EEN000234
£17,69 Unit Price incl. VAT
14
screw M6x130
AP4ABN000117
£15,96 Unit Price incl. VAT
15
Temperature gauge
640485
Not Available
16
Temp. Sensor
1A006046
Not Available
17
Thermostat cover
898431
£7,82 Unit Price incl. VAT
18
Spacer 6x8x6,8
AP3FCN000250
£1,27 Unit Price incl. VAT
19
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
20
Intake camshaft
AP3CBA000675
£152,32 Unit Price incl. VAT
21
Exhaust camshaft
AP3CBA000677
£94,68 Unit Price incl. VAT
22
Spacer washer
AP3CGA000244
£3,95 Unit Price incl. VAT
23
Stud bolt
873294
£5,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
