1
Engine displacement
150
2
Model
MOJITO
3
Year
2006
4
Trim
Mojito
5
Parts Catalog

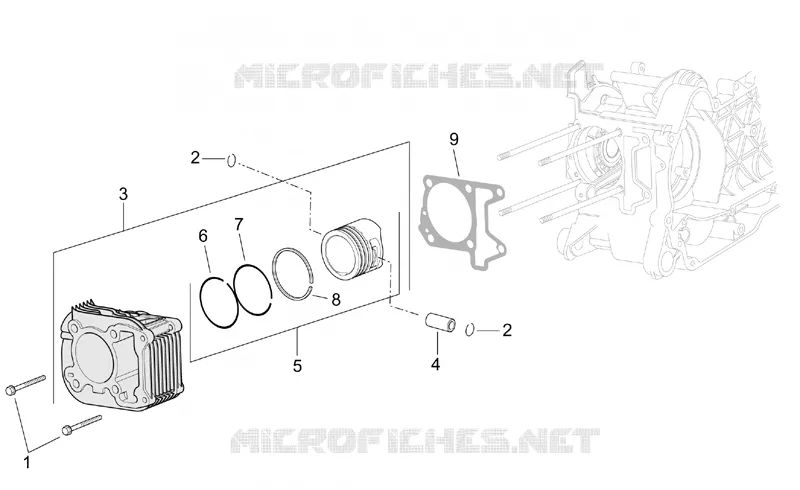

Cylinder - Piston
6
Parts Diagram
Parts Catalog
Controls - CUSTOM
by
Fuel tank
Cylinder - Piston
1
2
2
3
4
5
6
7
8
9
1
screw
AP8580086
Not Available
2
Snap ring
AP8580216
Not Available
3
Cylinder with piston
AP8540090
Not Available
3
Cylinder with piston
AP8540065
Not Available
4
Piston pin
AP8580001
Not Available
5
Piston assy 63,2
AP8540064
Not Available
5
Piston assy 4 cat.
AP8540148
Not Available
5
Piston assy 62,8
AP8540062
Not Available
5
Piston assy 2 cat.
AP8540070
Not Available
5
Piston assy 63
AP8540063
Not Available
5
Piston assy 4 cat.
AP8540061
Not Available
5
Piston assy 4 cat.
AP8540072
Not Available
5
Piston assy 2 cat.
AP8540146
Not Available
5
Piston assy 57,4
AP8540067
Not Available
5
Piston assy 1 cat.
AP8540058
Not Available
5
Piston assy 3 cat.
AP8540060
Not Available
5
Piston assy 3 cat.
AP8540071
Not Available
5
Piston assy 1 cat.
AP8540145
Not Available
5
Piston assy 57,2
AP8540066
Not Available
5
Piston assy 57,6
AP8540068
Not Available
5
Piston assy 1 cat.
AP8540069
Not Available
5
Piston assy 3 cat.
AP8540147
Not Available
5
Piston assy 2 cat.
AP8540059
Not Available
6
Ring 3° magg.
AP8580009
Not Available
6
Ring 63,2x1
AP8540027
Not Available
6
Ring 63,0x1
AP8540024
Not Available
6
Ring 62,8x1
AP8540021
Not Available
6
Ring 1° magg.
AP8580004
Not Available
6
Ring 2° magg.
AP8580007
Not Available
6
Ring d.57x1
AP8550499
Not Available
6
Ring 62,6x1
AP8540012
Not Available
7
Oil scraper ring 63,2x1
AP8540028
Not Available
7
Oil scraper ring d.57x1
AP8550506
Not Available
7
Oil scraper ring 62,6x1
AP8540013
Not Available
7
Oil scraper ring 62,8x1
AP8540022
Not Available
7
Oil scraper ring 3° magg.
AP8580010
Not Available
7
Oil scraper ring 2° magg.
AP8580008
Not Available
7
Oil scraper ring 1° magg.
AP8580005
Not Available
7
Oil scraper ring 63,0x1
AP8540025
Not Available
8
Oil scraper ring 63,0x2,5
AP8540026
Not Available
8
Oil scraper ring 62,6x2,5
AP8540015
Not Available
8
Oil scraper ring 63,2x2,5
AP8540029
Not Available
8
Oil scraper ring 3° magg.
AP8580011
Not Available
8
Oil scraper ring d.57x2,5
AP8550507
Not Available
8
Oil scraper ring 1° magg.
AP8580006
Not Available
8
Oil scraper ring 62,8x2,5
AP8540023
Not Available
8
Oil scraper ring 2° magg.
AP8580015
Not Available
9
Cylinder base gasket 0,4
AP8580149
Not Available
9
Cylinder base gasket 0,6
AP8580150
Not Available
9
Cylinder base gasket 0,8
AP8580151
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
