1
Engine displacement
1100
2
Model
TUONO
3
Year
2020
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
CENTRAL ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
FRONT ELECTRICAL SYSTEM
by
REAR ELECTRICAL SYSTEM

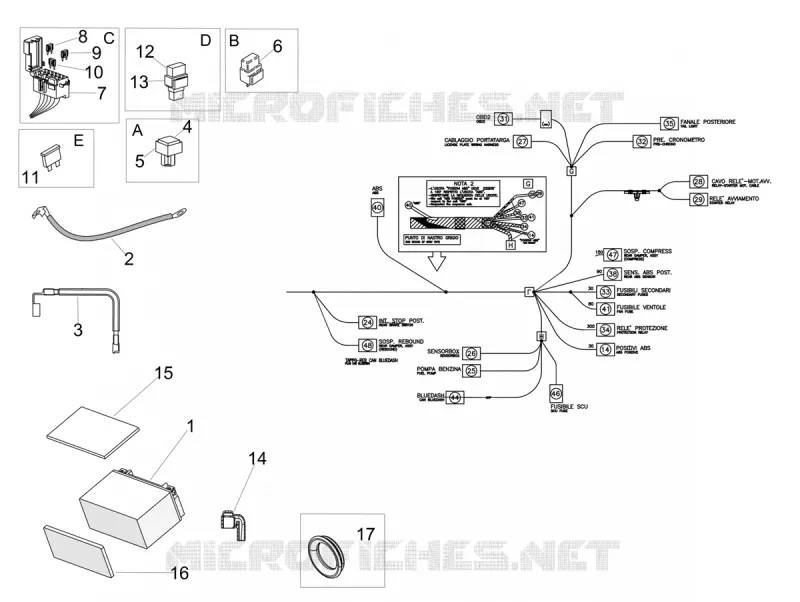

CENTRAL ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Battery 12V-12Ah
639792
£236,00 Unit Price incl. VAT
2
Earth cable
2D000158
£48,94 Unit Price incl. VAT
3
Câble positif de la batterie
2D000541
£45,82 Unit Price incl. VAT
4
Injection relay 12V-40W
895481
£19,52 Unit Price incl. VAT
5
Relay rubber
896715
£7,33 Unit Price incl. VAT
6
Starter relay
582690
£37,98 Unit Price incl. VAT
7
Rubber fuse box
858212
£13,80 Unit Price incl. VAT
8
Fuse 5A
CM225605
£4,74 Unit Price incl. VAT
9
Fuse 7,5A
CM225607
£4,74 Unit Price incl. VAT
10
Fuse 15A
CM225615
£5,77 Unit Price incl. VAT
11
Fuse 30A
CM225730
£4,74 Unit Price incl. VAT
12
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
13
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
14
Terminal cap
895701
£13,50 Unit Price incl. VAT
15
Lat.battery support rubber
AP8144552
£33,10 Unit Price incl. VAT
16
Support rubber part
AP8144553
£32,00 Unit Price incl. VAT
17
Fairlead
294754
£4,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
