1
Engine displacement
1100
2
Model
TUONO
3
Year
2020
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog

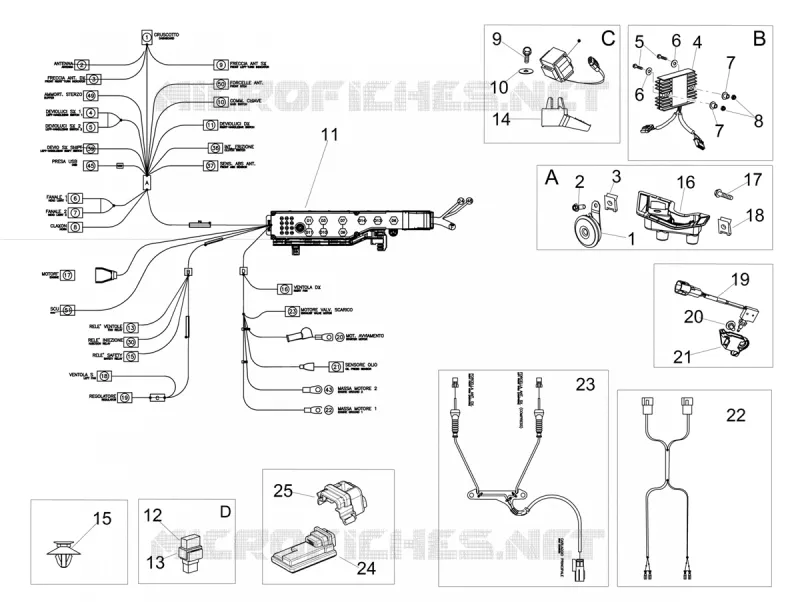

FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
CENTRAL ELECTRICAL SYSTEM
FRONT ELECTRICAL SYSTEM
25
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Horn
890979
£71,26 Unit Price incl. VAT
2
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Voltage regulator
B043488
£322,10 Unit Price incl. VAT
5
Hex socket screw M6x30
AP8152128
£1,88 Unit Price incl. VAT
6
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
7
T bush *
AP8121075
£1,96 Unit Price incl. VAT
8
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
9
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
10
Bush
AP8121991
£3,60 Unit Price incl. VAT
11
Câblage principal
2D000475
£939,11 Unit Price incl. VAT
12
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
13
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
14
Sensor support
858916
£10,82 Unit Price incl. VAT
15
Instrument support
890760
£16,21 Unit Price incl. VAT
16
Horn support
2B001765
£12,49 Unit Price incl. VAT
17
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
18
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
19
Stop switch
2D000325
£60,13 Unit Price incl. VAT
20
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
21
Maintenance switch
2B003519
£4,21 Unit Price incl. VAT
22
Turn ind.harness
2D000178
£17,30 Unit Price incl. VAT
23
FORK WIRING
2D000476
£52,80 Unit Price incl. VAT
24
Centrale ASC
2D0004799
Not Available
25
Couvercle de centrale
2B005646
£12,71 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
