1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog

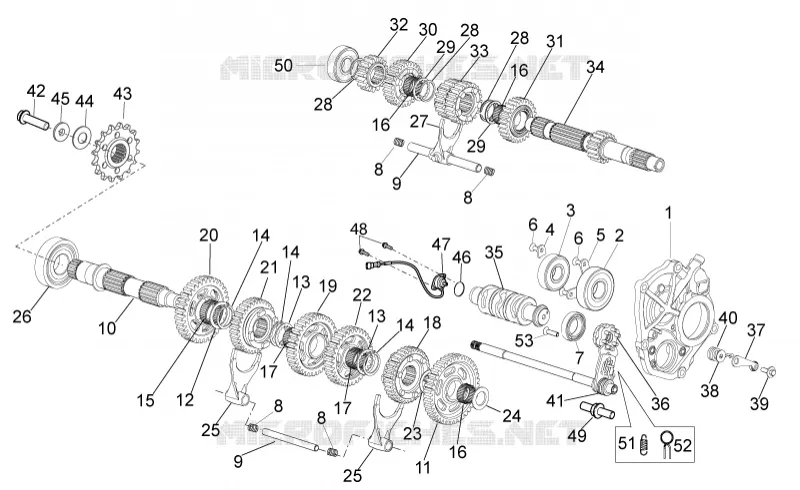

Gear box
6
Parts Diagram
Parts Catalog
FUEL TANK
by
Rear master cylinder
Gear box
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
13
14
14
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Trasmission support
2A000069
£438,92 Unit Price incl. VAT
2
Ball bearing 25x62x17
898634
£15,42 Unit Price incl. VAT
3
Ball bearing 20x52x15
898635
£14,38 Unit Price incl. VAT
4
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
5
Check bearing plate
857271
£13,02 Unit Price incl. VAT
6
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
7
Ball bearing 25x42x9
857250
£11,84 Unit Price incl. VAT
8
Spring
857175
£8,02 Unit Price incl. VAT
9
Fork shaft
857284
£86,29 Unit Price incl. VAT
10
Driven shaft
857236
£326,44 Unit Price incl. VAT
11
1st GEAR
2A000889
£150,05 Unit Price incl. VAT
12
Washer 30x40x1,5
857308
£15,91 Unit Price incl. VAT
13
Clearance washer
857247
£20,42 Unit Price incl. VAT
14
Circlip D30
857248
£5,14 Unit Price incl. VAT
15
Roller cage 30x35x13
857309
£92,64 Unit Price incl. VAT
16
Roller cage 24x28x13
857233
£87,47 Unit Price incl. VAT
17
Roller cage 26x30x15,6
857244
£87,47 Unit Price incl. VAT
18
5th GEAR
2A000890
£231,30 Unit Price incl. VAT
19
3rd wheel gear Z=34
857239
£149,23 Unit Price incl. VAT
20
2nd wheel gear Z=33
857238
£187,37 Unit Price incl. VAT
21
6th wheel gear Z=33
857242
£245,30 Unit Price incl. VAT
22
4th wheel gear Z=32
857240
£167,41 Unit Price incl. VAT
23
Washer 24x35x1
857246
£15,91 Unit Price incl. VAT
24
Washer 20,1x33,5x2,5
857245
£14,26 Unit Price incl. VAT
25
Fork
85253R
£126,55 Unit Price incl. VAT
26
Ball bearing 30X72X19
898633
£25,27 Unit Price incl. VAT
27
Fork
85252R
£167,20 Unit Price incl. VAT
28
Washer for shafts
857232
£5,14 Unit Price incl. VAT
29
Clearance washer
857234
£20,42 Unit Price incl. VAT
30
6th pinion gear Z=27
857231
£167,41 Unit Price incl. VAT
31
5th pinion gear Z=26
857230
£167,41 Unit Price incl. VAT
32
2nd pinion gear Z=16
857459
£86,58 Unit Price incl. VAT
33
3rd-4th pinion gear Z=20/Z=22
857229
£305,56 Unit Price incl. VAT
34
Primary gear shaft
857458
£394,68 Unit Price incl. VAT
35
Shift cam
857251
£223,34 Unit Price incl. VAT
36
Index washer
857123
Not Available
37
Index assy. lever
857274
£40,28 Unit Price incl. VAT
38
Washer D6,3x18x1
AP9150051
£4,80 Unit Price incl. VAT
39
Screw w/ flange M6x15
AP9150006
£13,28 Unit Price incl. VAT
40
Spring
2A000048
£7,40 Unit Price incl. VAT
41
Gear shaft+spring cpl.
857253
£122,86 Unit Price incl. VAT
42
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
43
Pinion Z=15
2B001710
£66,94 Unit Price incl. VAT
44
Belleville spring
854909
£2,17 Unit Price incl. VAT
45
T bush
854951
£9,96 Unit Price incl. VAT
46
O-ring
857494
£7,85 Unit Price incl. VAT
47
Gear position sensor
2D000300
Not Available
48
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
49
Threaded pin
899599
£14,77 Unit Price incl. VAT
50
Ball bearing 20x52x15
898636
£15,42 Unit Price incl. VAT
51
Fasten spring
857260
£18,00 Unit Price incl. VAT
52
Spring
2A000047
£10,07 Unit Price incl. VAT
53
Vis TCEI M6x20
1A011247
£4,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
