1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog

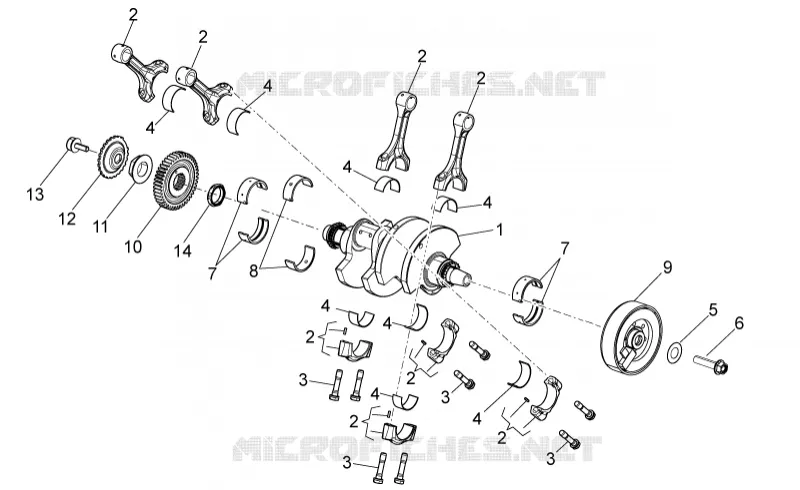

CRANKSHAFT
6
Parts Diagram
Parts Catalog
WATERPUMP
by
CYLINDER HEAD - VALVES
CRANKSHAFT
1
2
2
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
1
Drive shaft PP
2A000299PP
£1 717,72 Unit Price incl. VAT
1
Drive shaft NN
2A000299NN
£1 717,72 Unit Price incl. VAT
1
Drive shaft MM
2A000299MM
£1 717,72 Unit Price incl. VAT
1
Drive shaft HH
2A000299HH
£1 717,72 Unit Price incl. VAT
1
Drive shaft OO
2A000299OO
£1 717,72 Unit Price incl. VAT
1
Drive shaft LL
2A000299LL
£1 717,72 Unit Price incl. VAT
2
Connecting rod, selection class "B"
2A000622BB
Not Available
2
Connecting rod, selection class "D"
2A000622DD
Not Available
2
Missing description
2A000622EE
Not Available
2
Missing description
2A000622AA
Not Available
2
Connecting rod, selection class "C"
2A000622CC
Not Available
3
Connecting rod screw
B045844
Not Available
4
Connecting rod half-bearing, green
2A0008370V
Not Available
4
Connecting rod half-bearing, blue
2A0008370B
Not Available
4
Connecting rod half-bearing, yellow
2A0008370G
Not Available
5
Washer 12x26.5x3
897478
£9,68 Unit Price incl. VAT
6
Screw w/ flange M12X1,25X50
857206
£25,60 Unit Price incl. VAT
7
Bushing half-shell, blue
8571320B
£45,00 Unit Price incl. VAT
7
Bearing half-shell, green
8571320V
£45,00 Unit Price incl. VAT
7
Bushing half-shell, yellow
8571320G
£45,00 Unit Price incl. VAT
8
Green central bushing half case
8571300V
£30,01 Unit Price incl. VAT
8
Bushing half-shell, yellow
8571300G
£30,01 Unit Price incl. VAT
8
Bushing half-shell, blue
8571300B
£30,01 Unit Price incl. VAT
9
Volant magnétique complet
1A010574
£576,23 Unit Price incl. VAT
10
Primary drive gear
899484
£201,60 Unit Price incl. VAT
11
Ring nut
B043204
£16,76 Unit Price incl. VAT
12
Phonic wheel
857118
£54,54 Unit Price incl. VAT
13
Special screw M8x24
857077
£42,07 Unit Price incl. VAT
14
Sprocket spacer
897474
£15,91 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
