1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
Crank-case I
6
Parts Diagram
Parts Catalog
Valves cover
by
SWINGARM

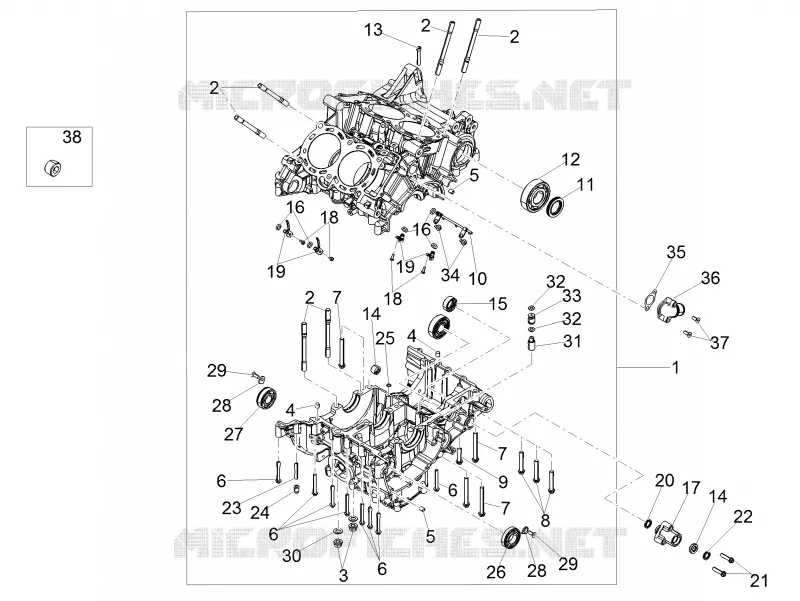

Crank-case I
1
2
2
2
2
3
4
4
5
5
6
6
6
6
7
7
7
8
9
10
11
12
13
14
14
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
32
33
34
35
36
37
38
1
Carter, pair
2A0007875
Not Available
2
Stud bolt m10x126
857087
Not Available
3
Flanged nut M10x1
897434
£13,64 Unit Price incl. VAT
4
Pin M8x12
857427
£2,23 Unit Price incl. VAT
5
Pin
411209
£4,56 Unit Price incl. VAT
6
Screw w/ flange M6x50
AP9100433
£2,44 Unit Price incl. VAT
7
Screw w/ flange
AP8152294
£1,88 Unit Price incl. VAT
8
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
9
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
10
Lubrication pipe
2A000569
£61,80 Unit Price incl. VAT
11
Gasket ring 30x47x7
857128
£36,40 Unit Price incl. VAT
12
Ball bearing 30X72X19
898633
£25,27 Unit Price incl. VAT
13
Hex socket screw M6x40
AP8152003
£1,27 Unit Price incl. VAT
14
12x8x12 roller bearing
B045224
£7,79 Unit Price incl. VAT
15
Roller cage HK1512
857249
£28,31 Unit Price incl. VAT
16
O-ring 6x1
GU90706009
£2,48 Unit Price incl. VAT
17
Maintenance
857090
£105,97 Unit Price incl. VAT
18
Screw TB 4X12 TORX
B046202
£0,60 Unit Price incl. VAT
19
Piston cooling jet
2A000885
£35,82 Unit Price incl. VAT
20
Gasket ring 17,12X2,62
857109
£5,14 Unit Price incl. VAT
21
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
22
Gasket ring 12x22
857127
Not Available
23
Missing description
1A011263
£3,49 Unit Price incl. VAT
24
Special nut
857496
£13,28 Unit Price incl. VAT
25
O-ring
857144
£0,71 Unit Price incl. VAT
26
Bearing
897436
£17,76 Unit Price incl. VAT
27
Bearing
897435
£13,52 Unit Price incl. VAT
28
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
29
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
30
Washer 19 x 10,5 x 1,6
857208
£5,14 Unit Price incl. VAT
31
Lubricating jet
2A000363
£6,96 Unit Price incl. VAT
32
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
33
Relief Valve
B045126
£25,40 Unit Price incl. VAT
34
Screw w/ flange
1A003114
£21,00 Unit Price incl. VAT
35
Water connection Gasket
1A006321
£1,61 Unit Price incl. VAT
36
Joint
857126
£28,81 Unit Price incl. VAT
37
Screw w/ flange
872117
Not Available
38
Plug M16X1,5
974060
£5,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
