1
Engine displacement
1100
2
Model
TUONO
3
Year
2020
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog

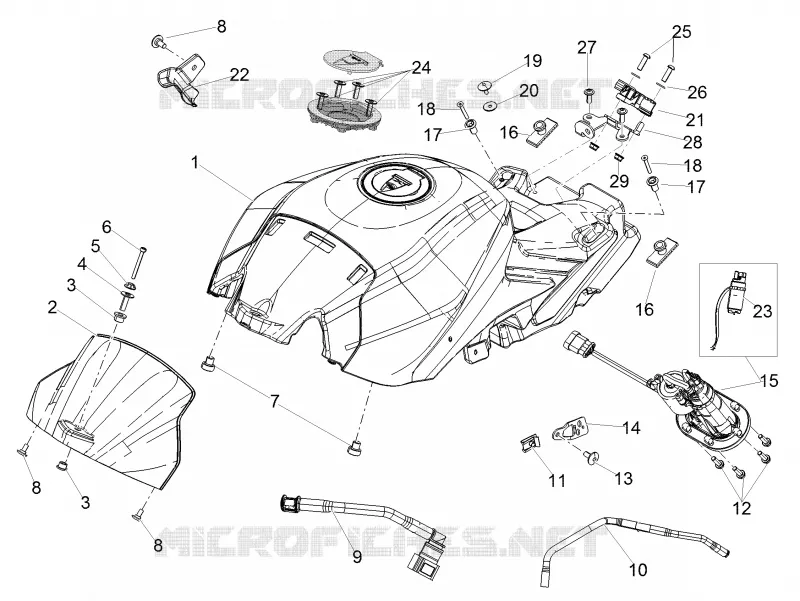

FUEL TANK
6
Parts Diagram
Parts Catalog
SEAT
by
Valves cover
FUEL TANK
1
2
3
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
1
Réservoir d'ess. noir comp.
2H002992500XN2
Not Available
1
Réservoir ess.blanc
2H003843000Q4
Not Available
1
Réservoir noir
2H003046500XN6
Not Available
1
Réservoir compl.
2B001501
£1 108,45 Unit Price incl. VAT
2
Habillage réservoir
B044547
Not Available
2
Cache-réservoir, blanc
B04454700Q4
Not Available
2
Cache-réservoir, rouge
B04454700XR4
£164,10 Unit Price incl. VAT
2
Couvercle de réservoir d'ess. peint en gris
B04454700XHD
£176,41 Unit Price incl. VAT
3
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
4
Bush Fixing
B044548
£15,16 Unit Price incl. VAT
5
Special washer
AP8150536
£24,73 Unit Price incl. VAT
6
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
7
Rubber spacer
AP8144158
£8,17 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
9
Fuel pipe
858884
£113,57 Unit Price incl. VAT
10
Breather pipe
895959
£15,19 Unit Price incl. VAT
11
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
12
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
13
Hex socket screw M5x10
AP8150538
£1,94 Unit Price incl. VAT
14
LH support
858886
£13,60 Unit Price incl. VAT
15
Fuel pump cpl.
B043925
Not Available
16
Rubber spacer *
AP8120663
£7,32 Unit Price incl. VAT
17
Spacer
893273
£10,54 Unit Price incl. VAT
18
screw
576836
£3,60 Unit Price incl. VAT
19
Fixing pin
AP8161127
£13,56 Unit Price incl. VAT
20
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
21
Missing description
2D000385
Not Available
22
Maintenance
B044550
£8,16 Unit Price incl. VAT
23
Fuel level sensor
899068
£149,88 Unit Price incl. VAT
24
Hex socket screw M5x14
B043864
£2,24 Unit Price incl. VAT
25
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
26
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
27
Screw w/ flange M6x12
GU98210612
£8,05 Unit Price incl. VAT
28
Support bracket
2B002985
£22,93 Unit Price incl. VAT
29
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
