1
Engine displacement
50
2
Model
SR
3
Year
2018
4
Trim
SR 50 R H2O 2T Euro 4
5
Parts Catalog

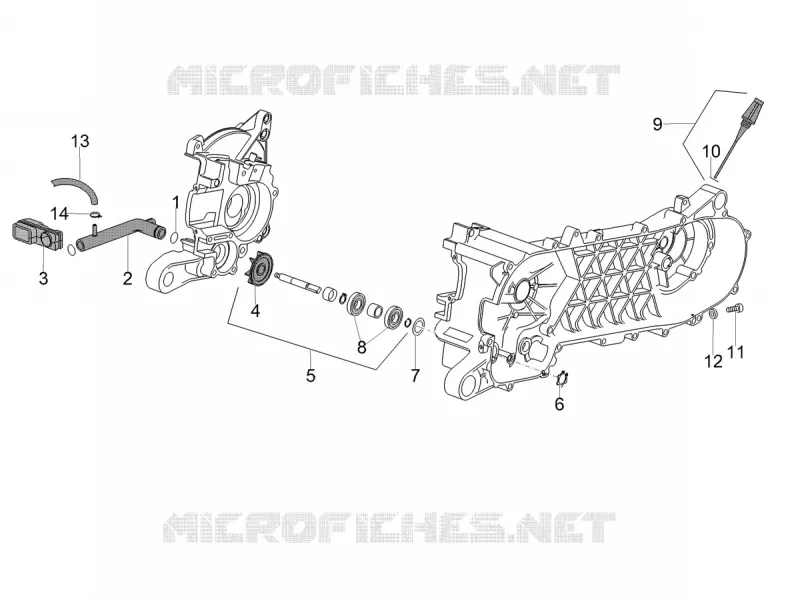

WATERPUMP
6
Parts Diagram
Parts Catalog
FRONT WHEEL
by
CLUTCH COVER
WATERPUMP
1
O-ring
289254
£0,62 Unit Price incl. VAT
2
Water outlet union
878910
£15,47 Unit Price incl. VAT
3
Fairlead
827685
£1,60 Unit Price incl. VAT
4
Impeller
487730
£17,38 Unit Price incl. VAT
5
Shaft pin
2895085
Not Available
6
Stop ring
289553
£0,86 Unit Price incl. VAT
7
Thrust washer
289554
£0,76 Unit Price incl. VAT
8
Bearing
487392
£7,38 Unit Price incl. VAT
9
Complete oil level dipstick
832130
£5,47 Unit Price incl. VAT
10
Gasket ring 14,43x9,19x2,62
827085
£0,62 Unit Price incl. VAT
11
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
12
Gasket
000397
Not Available
13
Carb-pump by-pass pipe
488139
£4,44 Unit Price incl. VAT
14
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
