1
Engine displacement
50
2
Model
SR
3
Year
2018
4
Trim
SR 50 R H2O 2T Euro 4
5
Parts Catalog
HANDLEBAR - CONTROLS
6
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
FRONT LIGHTS

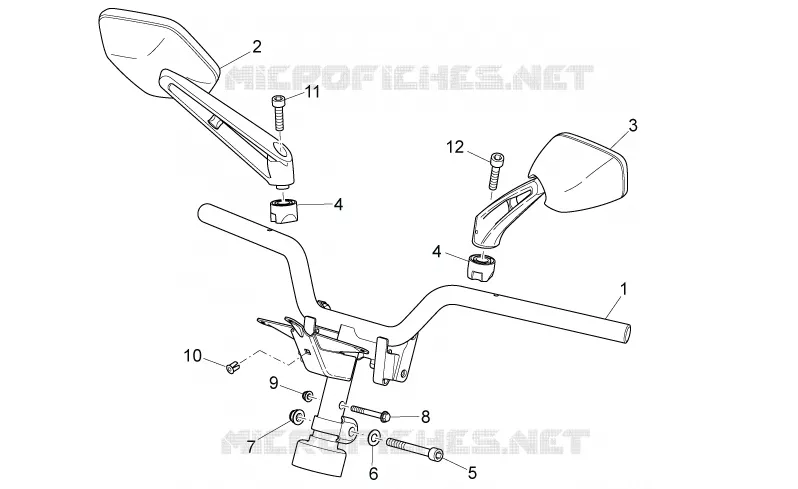

HANDLEBAR - CONTROLS
1
2
3
4
4
5
6
7
8
9
10
11
12
1
Handlebar w phor ctng.
AP8218638
£275,27 Unit Price incl. VAT
2
RH rearview mirror
AP8202394
£24,13 Unit Price incl. VAT
3
LH rearview mirror
AP8202395
£24,13 Unit Price incl. VAT
4
Rearview mirror base
AP8268250
£10,37 Unit Price incl. VAT
5
Hex socket screw
AP8150086
£3,60 Unit Price incl. VAT
6
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
7
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
8
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
9
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
10
Plastic rivet
AP8102671
£0,29 Unit Price incl. VAT
11
screw
AP8152477
£3,24 Unit Price incl. VAT
12
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
