1
Engine displacement
1000
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1000 RR Euro 4 ABS
5
Parts Catalog

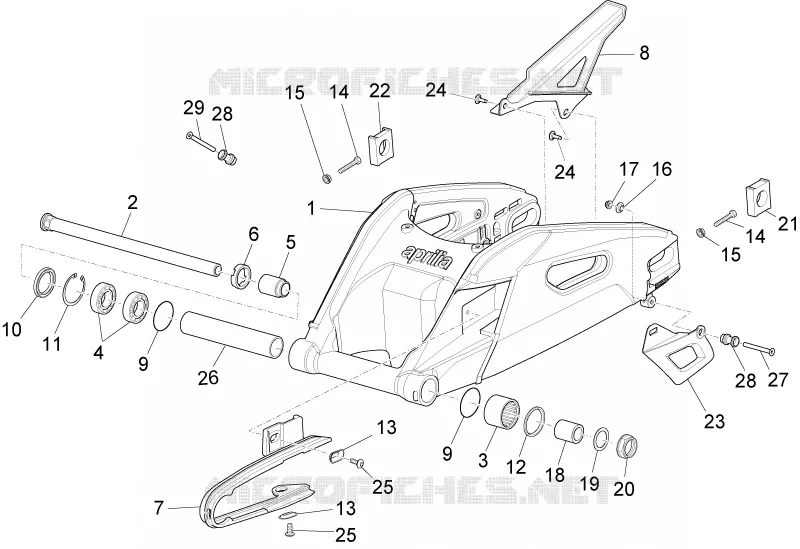

SWINGARM
6
Parts Diagram
Parts Catalog
REAR BRAKE MASTER CYLINDER
by
FRONT BRAKE MASTER CYLINDER
SWINGARM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
28
29
1
Swing arm
2B001289
Not Available
2
Rear swing arm pin
858707
£220,78 Unit Price incl. VAT
3
Roller cage
AP8110078
£11,72 Unit Price incl. VAT
4
Ball bearing 61904-2RS1
890002
£46,70 Unit Price incl. VAT
5
Adjustment bush
858708
£73,96 Unit Price incl. VAT
6
Swing arm ring nut
648707
£14,14 Unit Price incl. VAT
7
Chain guide plate
858780
£21,80 Unit Price incl. VAT
8
Chain guard
858783
£13,85 Unit Price incl. VAT
9
O-ring 134
AP8144048
£1,27 Unit Price incl. VAT
10
Gasket ring
AP8144006
£13,28 Unit Price incl. VAT
11
Inside circlip d37
AP8121204
£1,27 Unit Price incl. VAT
12
Gasket ring
AP8144005
£13,28 Unit Price incl. VAT
13
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
14
Chain tens.adjuster screw
2B001920
£4,74 Unit Price incl. VAT
15
Nut M6
2B004511
£0,42 Unit Price incl. VAT
16
T bush *
AP8121075
£1,96 Unit Price incl. VAT
17
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
18
Rear int.sw.arm piv.bush
858936
£35,00 Unit Price incl. VAT
19
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
20
Rear wheel spindle nut
648708
Not Available
21
LH chain guide plate
AP8144443
£28,00 Unit Price incl. VAT
22
RH chain guide plate
AP8144444
£28,00 Unit Price incl. VAT
23
Chain guide plate
858781
£12,98 Unit Price incl. VAT
24
Screw w/ flange M5x12
AP8152302
Not Available
25
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
26
Internal spacer
AP8121570
£52,81 Unit Price incl. VAT
27
Screw
AP8150503
£1,69 Unit Price incl. VAT
28
Maintenance
AP8148824
£17,62 Unit Price incl. VAT
29
Screw M6x40
AP8150468
£1,27 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
