1
Engine displacement
125
2
Model
RS
3
Year
2019
4
Trim
RS 125 Replica GP 4T Euro 4 ABS
5
Parts Catalog
THROTTLE BODY
6
Parts Diagram
Parts Catalog
REAR ELECTRICAL SYSTEM
by
CRANKSHAFT

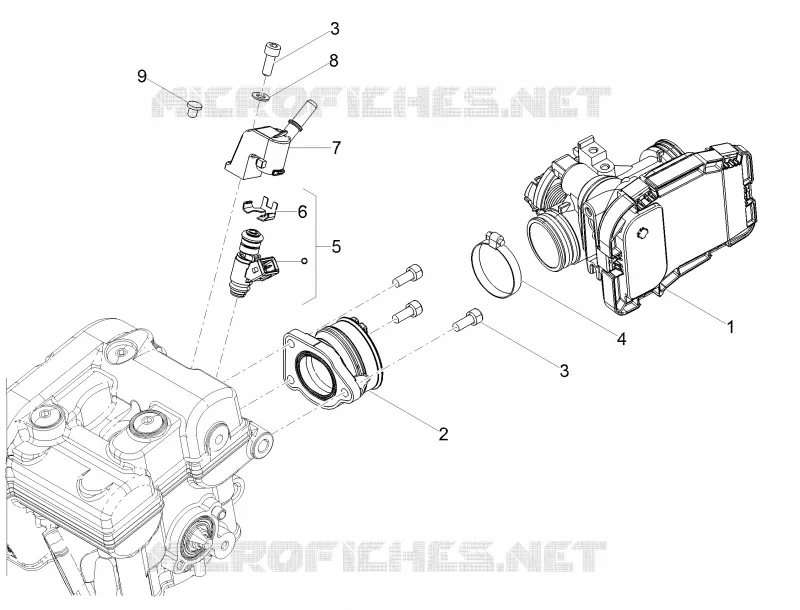

THROTTLE BODY
1
2
3
3
4
5
6
7
8
9
1
Throttle body with E.C.U.
CM275601
Not Available
2
Throttle body hose
897800
£39,48 Unit Price incl. VAT
3
Hex socket screw
AP8150521
£1,88 Unit Price incl. VAT
4
Hose clamp
1A000833
£9,46 Unit Price incl. VAT
5
Injector kit complete IWP198
890225
£163,16 Unit Price incl. VAT
6
Spring
849898
£5,17 Unit Price incl. VAT
7
fuel rail assembly
897801
Not Available
8
Flat washer 6,4x12x1
003056
Not Available
9
Cap
932108
£2,23 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
