1
Engine displacement
125
2
Model
RS
3
Year
2019
4
Trim
RS 125 Replica GP 4T Euro 4 ABS
5
Parts Catalog

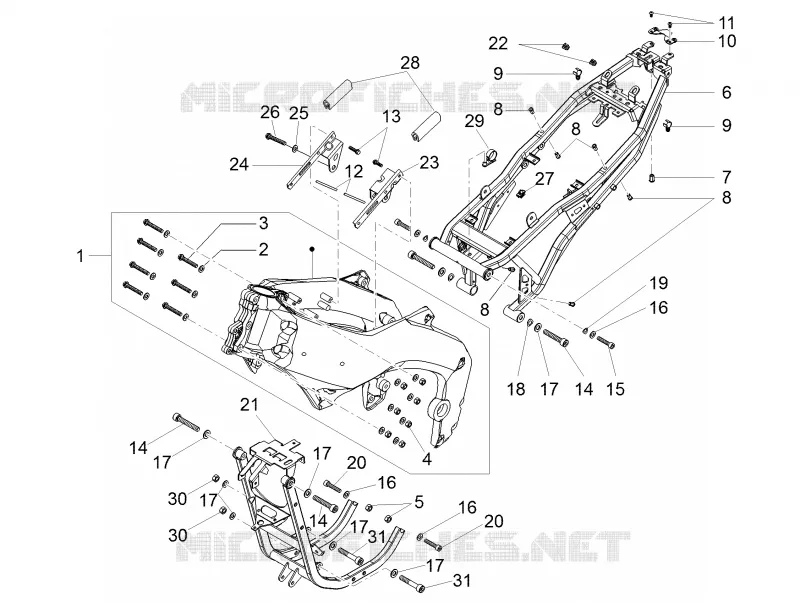

FRAME
6
Parts Diagram
Parts Catalog
REAR MUDGUARD
by
OWNER'S MANUAL - TOOL KIT
FRAME
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
14
14
14
15
16
16
16
17
17
17
17
17
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
1
Frame polaris grey
2B004654000XH4
£1 449,41 Unit Price incl. VAT
2
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
3
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
4
Nut
AP8152350
£1,26 Unit Price incl. VAT
5
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
6
Saddle support
2B002809
Not Available
7
Hex threaded insert
AP8102902
£1,88 Unit Price incl. VAT
8
Threaded rivet
AP8201755
£6,38 Unit Price incl. VAT
9
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT
10
Headlight support clamp
858903
£23,00 Unit Price incl. VAT
11
Hex socket screw M5x10
AP8150538
£1,94 Unit Price incl. VAT
12
Gasket
2B000909
£2,84 Unit Price incl. VAT
13
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
14
Hex socket screw M10x45
AP8150038
£3,82 Unit Price incl. VAT
15
Hex socket screw
890638
Not Available
16
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
17
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
18
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
19
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
20
Hex socket screw
478761
£1,57 Unit Price incl. VAT
21
Front frame
898365
£280,20 Unit Price incl. VAT
22
Captive nut M6
AP8221213
£1,88 Unit Price incl. VAT
23
LH engine supoprt
898907
£23,00 Unit Price incl. VAT
24
RH engine support
898908
£23,00 Unit Price incl. VAT
25
Washer
00402100001
Not Available
26
screw M10
00002011600
Not Available
27
Molletta
B005629
£1,99 Unit Price incl. VAT
28
Gasket
AP8144707
£10,22 Unit Price incl. VAT
29
Non return spring
582153
£4,42 Unit Price incl. VAT
30
Self locking nut M10
002440
Not Available
31
screw 10M150X100
00H03000272
£3,43 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
