1
Engine displacement
125
2
Model
RS
3
Year
2019
4
Trim
RS 125 Replica GP 4T Euro 4 ABS
5
Parts Catalog

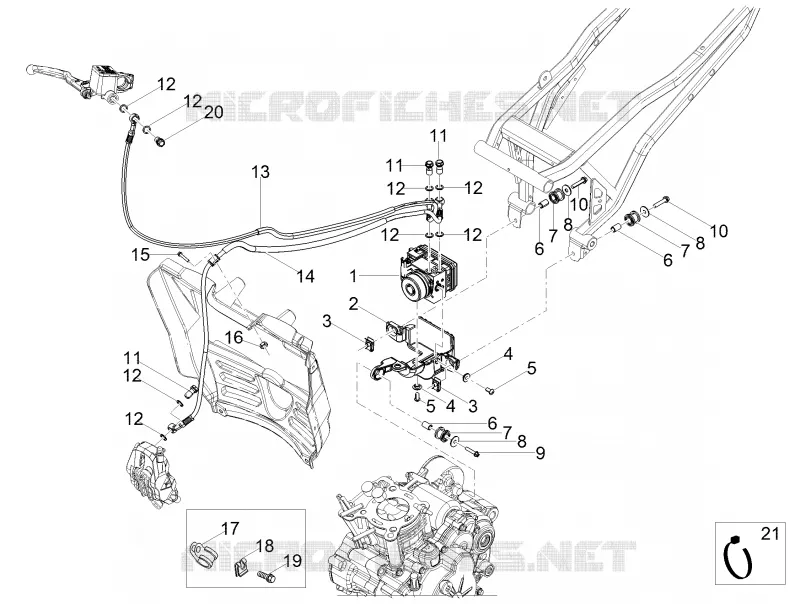

ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
REAR BRAKE MASTER CYLINDER
by
FRONT ELECTRICAL SYSTEM
ABS BRAKE SYSTEM
1
2
3
3
4
4
5
5
6
6
6
7
7
7
8
8
8
9
10
10
11
11
11
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
1
ABS electrohydraulic unit, prefilled
2D000184
£575,59 Unit Price incl. VAT
2
Lower support
2B002737
£18,28 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
5
Hex socket screw M6x12
AP8152186
£0,52 Unit Price incl. VAT
6
Headlight bush
AP8121718
£1,88 Unit Price incl. VAT
7
Rubber spacer
AP8144328
£3,12 Unit Price incl. VAT
8
Washer
297029
£1,27 Unit Price incl. VAT
9
Screw w/ flange M5x25
AP8152275
Not Available
10
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
11
Special screw
1C001209
Not Available
12
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
13
Brake master cylinder-HECU pipe
2B003100
£45,41 Unit Price incl. VAT
14
Brake calliper-HECU pipe
2B003101
£46,28 Unit Price incl. VAT
15
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
16
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
17
Brake hose hanger
AP8134167
£18,38 Unit Price incl. VAT
18
Spring plate M6
254485
£1,64 Unit Price incl. VAT
19
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
20
Bleeder kit
AP8133945
£27,12 Unit Price incl. VAT
21
Hose clamp
668762
£2,36 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
