1
Engine displacement
50
2
Model
SX
3
Year
2020
4
Trim
SX 50 Factory Euro 4
5
Parts Catalog

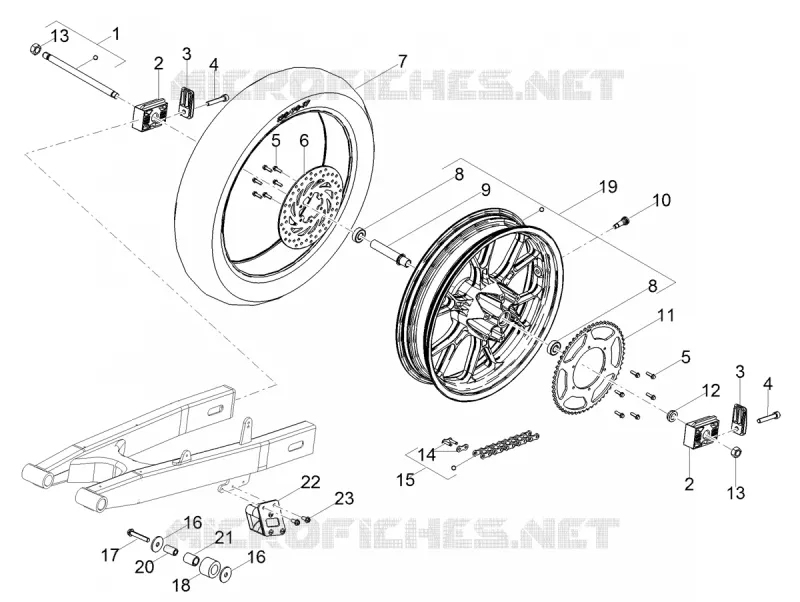

Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Front master cilinder
Rear wheel
23
22
21
20
19
18
17
16
16
15
14
13
13
12
11
10
9
8
8
7
6
5
5
4
4
3
3
2
2
1
1
Pin
00H01303201
£35,58 Unit Price incl. VAT
2
Chain tensioner
00H01303171
£36,16 Unit Price incl. VAT
3
Plate
00H01301471
£20,98 Unit Price incl. VAT
4
Hex socket screw M8x50
AP8150277
£1,94 Unit Price incl. VAT
5
M6x20 pre-coated hex head screw
2B004560
£0,96 Unit Price incl. VAT
6
Rear brake disc
866115
£31,32 Unit Price incl. VAT
7
Rear tyre 130/70-17" Savatech
899860
£184,08 Unit Price incl. VAT
8
Bearing
00058020200
Not Available
9
Spacer
00H01311091
£22,33 Unit Price incl. VAT
10
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
11
Corona Z 59
2B004446
£64,60 Unit Price incl. VAT
12
Spacer bush
867301
£7,85 Unit Price incl. VAT
13
Nut
00H00300672
£1,00 Unit Price incl. VAT
14
Connecting link
2B004620
£6,23 Unit Price incl. VAT
14
Connecting link
2B005115
£3,24 Unit Price incl. VAT
15
Chain 134P
2B004464
Not Available
16
Washer 8,4x32x2,5
AP8150019
£0,85 Unit Price incl. VAT
17
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
18
Chain tensioner roller
AP8120569
£26,51 Unit Price incl. VAT
19
Rear wheel 2,15X18"
00H01312381
£538,24 Unit Price incl. VAT
20
Spacer *
AP8121672
£3,11 Unit Price incl. VAT
21
Spacer *
AP8120568
£2,18 Unit Price incl. VAT
22
Chain guide
86133R
£38,77 Unit Price incl. VAT
23
Screw w/ flange M6x12
884043
£2,48 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
