1
Engine displacement
50
2
Model
SX
3
Year
2018
4
Trim
SX 50 Factory Euro 4
5
Parts Catalog

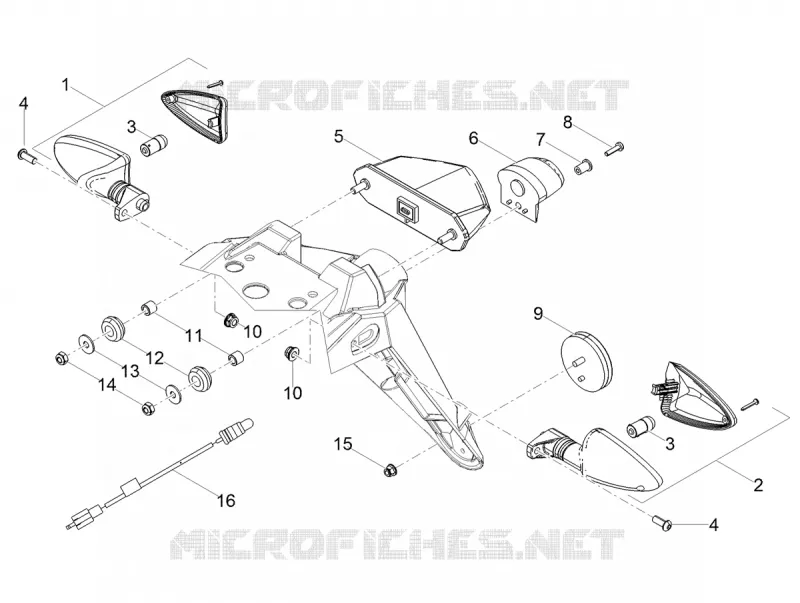

Rear lights
6
Parts Diagram
Parts Catalog
Instruments
by
Fuel tank
Rear lights
16
15
14
13
12
11
10
10
9
8
7
6
5
4
4
3
3
2
1
1
LH front/RH rear turn indic.
AP8127784
£52,98 Unit Price incl. VAT
2
RH front/LH rear turn indic.
AP8127783
£52,98 Unit Price incl. VAT
3
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
4
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
5
Taillight
00H01009321
£102,48 Unit Price incl. VAT
6
Number-plate light
1D002474
£6,17 Unit Price incl. VAT
7
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
8
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
9
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
11
Ring nut
00H01505051
£5,14 Unit Price incl. VAT
12
Grommet
00008915020
Not Available
13
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
14
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
15
Self-locking nut M5
AP8152306
Not Available
16
Plate light wiring
2D000394
£31,87 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
