Parts Catalog
Swing arm
6

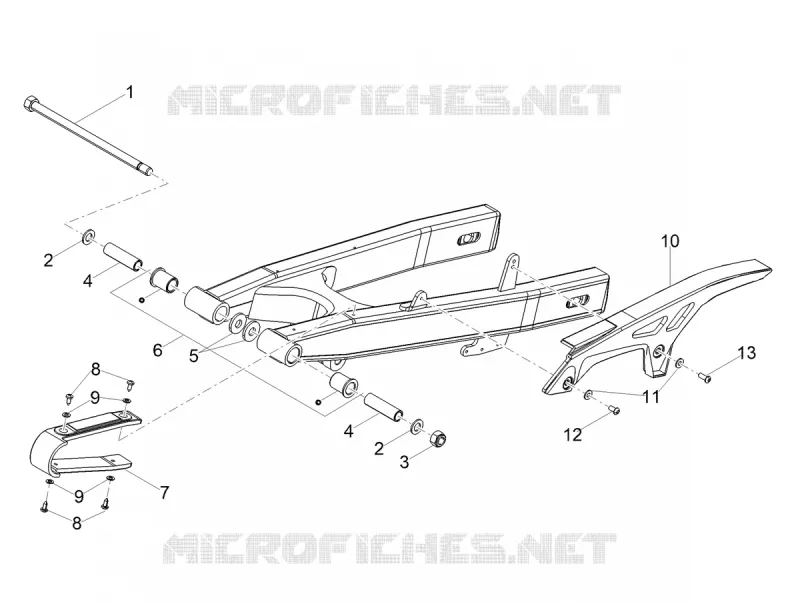

Parts Diagram
Parts Catalog
Central stand
by
Front mudguard-Pillar
Swing arm
13
12
11
10
9
9
8
8
7
6
5
4
4
3
2
2
1
1
Rear swing arm pin
00H01304202
Not Available
2
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
3
Nut
00262120032
Not Available
4
Spacer
00H00301401
£13,88 Unit Price incl. VAT
5
Washer
00D01300192
£2,24 Unit Price incl. VAT
6
Swing arm
2B0047175
Not Available
7
Chain guide plate
00H01804331
£13,90 Unit Price incl. VAT
8
screw 4,8X13
00011141300
Not Available
9
Washer 5,3X10X1
AP8150177
£0,06 Unit Price incl. VAT
10
Chain cover
00H01508181
£32,50 Unit Price incl. VAT
11
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
12
Hex socket screw
AP8150340
£1,32 Unit Price incl. VAT
13
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
